Hydraulic Cable Drum Transport & Cable Laying
Specially designed for cable drum transport, hydraulic reel lifting, controlled unwinding and rewinding on power, telecom and utility projects. STU produces this reel cable roller trailer with 1 axle with adjustable hydraulic arms, operation by remote control and a stable chassis for demanding field work.
Hydraulic arms lift cable drums of up to 7,000 kg, widen to the reel width with automatic locking, move left and right, and rewind or unwind the cable during laying. A Honda GX630 engine drives a Bosch Rexroth pump, and the operator controls every major movement with an Autec joystick remote; manual control is also available.
The chassis is Strenx 700MC / S960Q high-strength steel from SSAB on a single TRAX drum axle rated at 12 tonnes, with hydraulic suspension and Knorr-Bremse 2S-2M EBS: high-strength steel explained. The platform extends to suit the reel, the mudguards and light beam move with it, and rear hydraulic landing gear steadies the trailer during loading. Width 2,550 mm, maximum height 4,000 mm, empty weight 6,000 kg ±3%.
.jpg/60c09195/1920.webp)
.jpg/5d4f1fd4/1920.webp)
.jpg/89581d27/1920.webp)
.jpg/2aac5fc5/1920.webp)
Swipe to browse

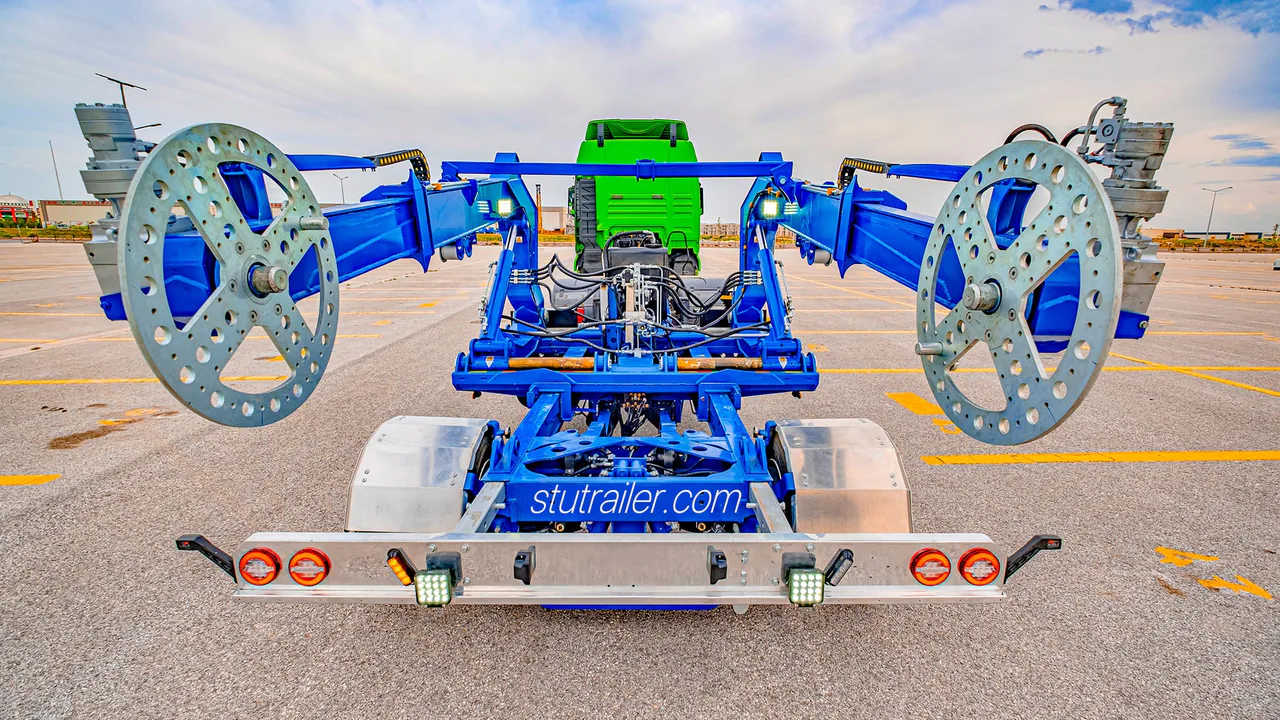

The hydraulic drum handling system helps operators lift, position, rewind and unwind cable reels during transport and cable laying. It is designed for power cable, telecom cable and utility infrastructure work where controlled reel movement is essential.

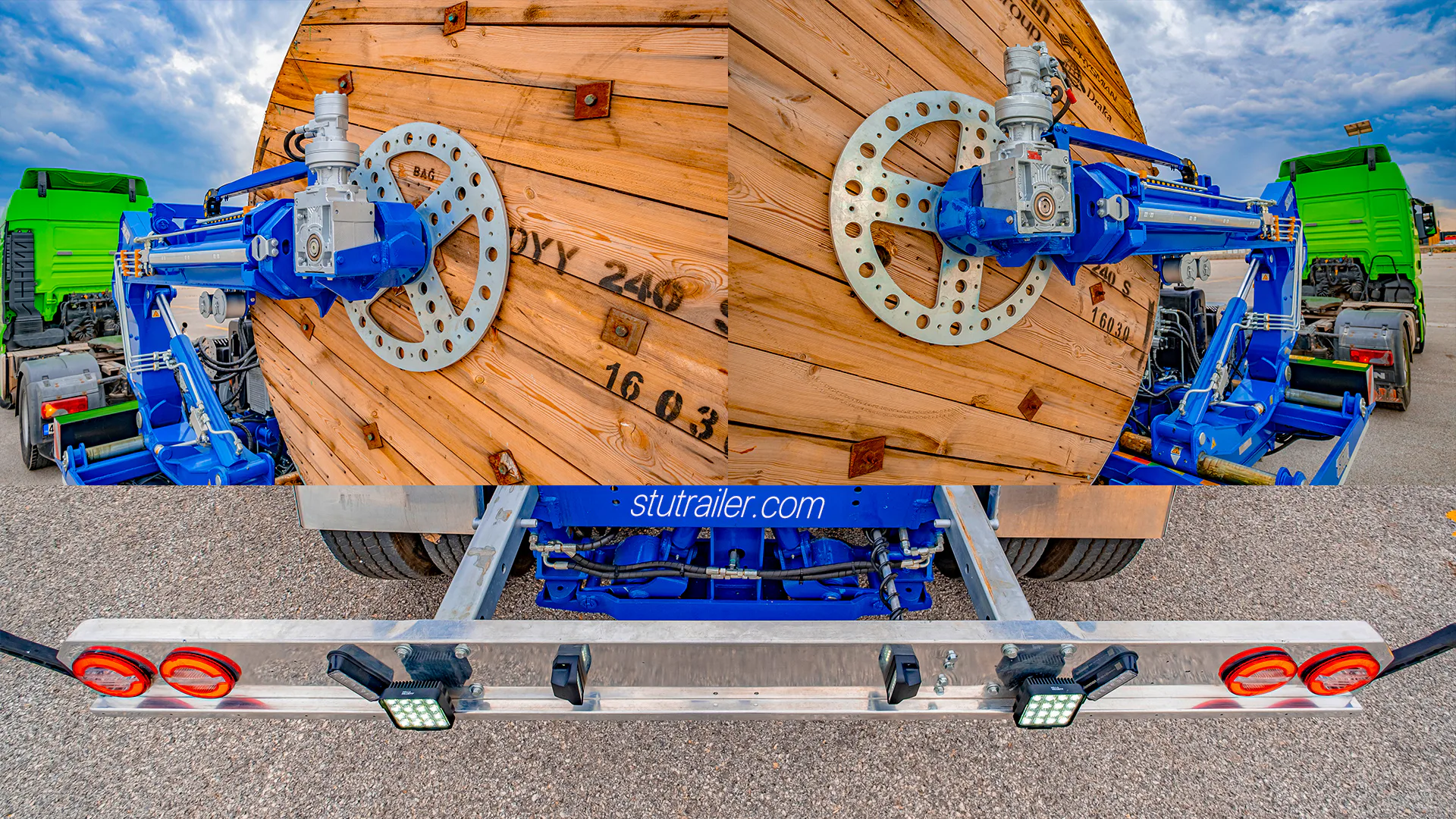

Hydraulic arms help lift and position heavy cable drums with controlled movement.
Supports cable payout and retrieval with better control during site operations.
Arm widening and movement to the left and right help match different reel widths and working positions.

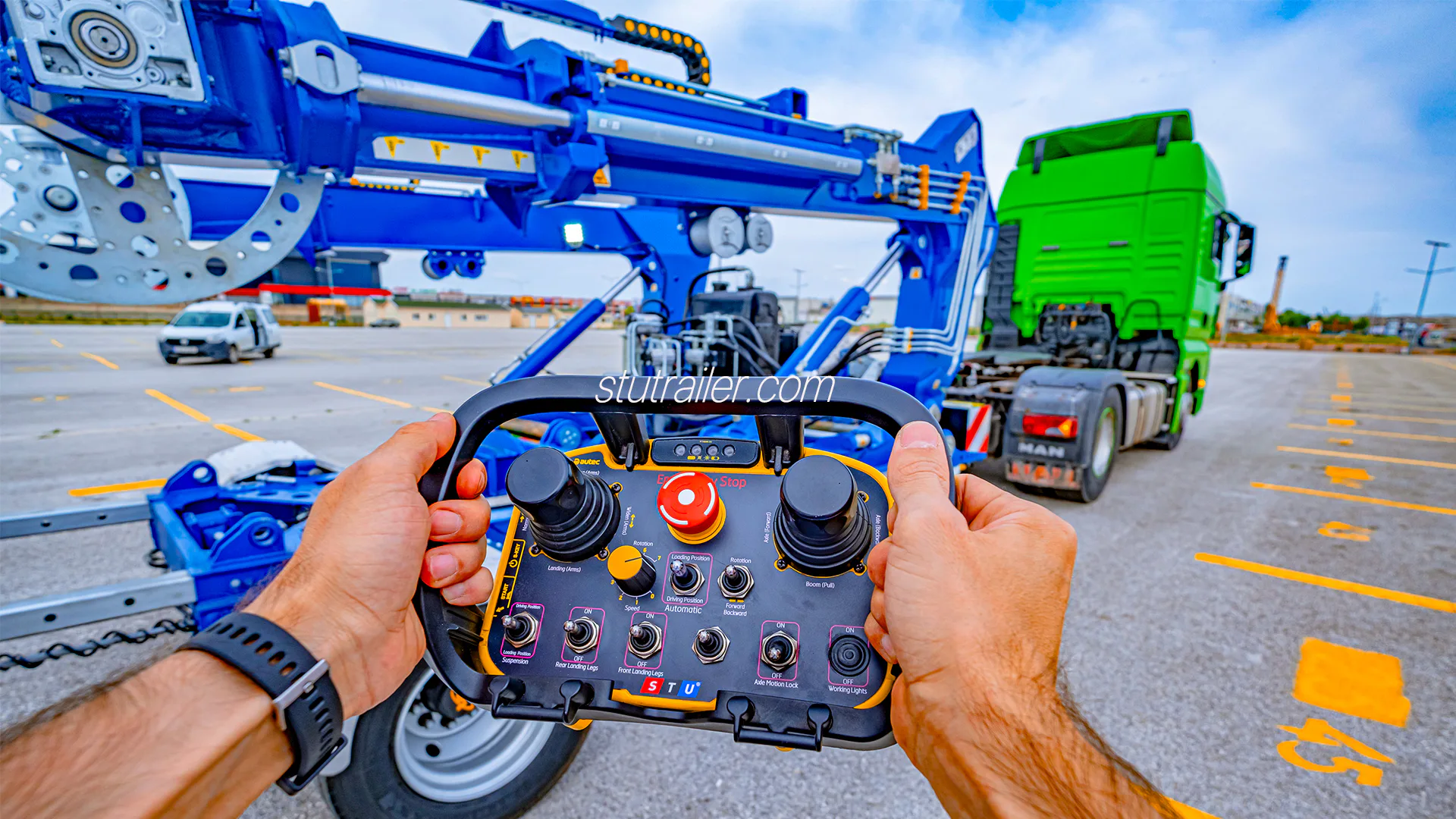

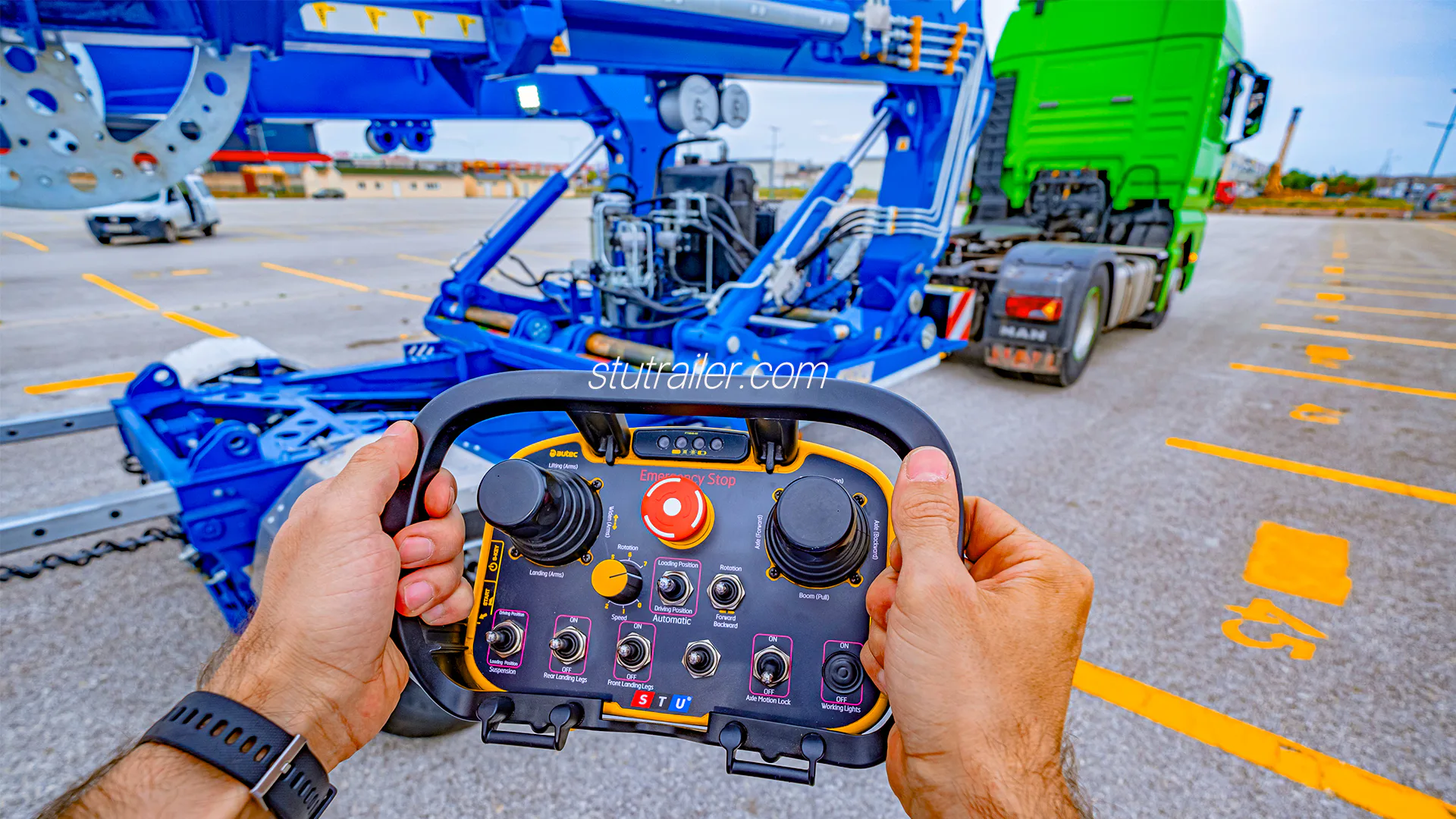

The trailer can be operated with an Autec sensitive joystick remote for major hydraulic functions. Remote control improves visibility, control and workflow when handling reels in tight or active job sites.
Major hydraulic movements can be controlled remotely for precise reel handling.
Manual control support keeps operation practical when direct local control is preferred.
A controlled hydraulic system helps reduce manual handling during cable reel operations.

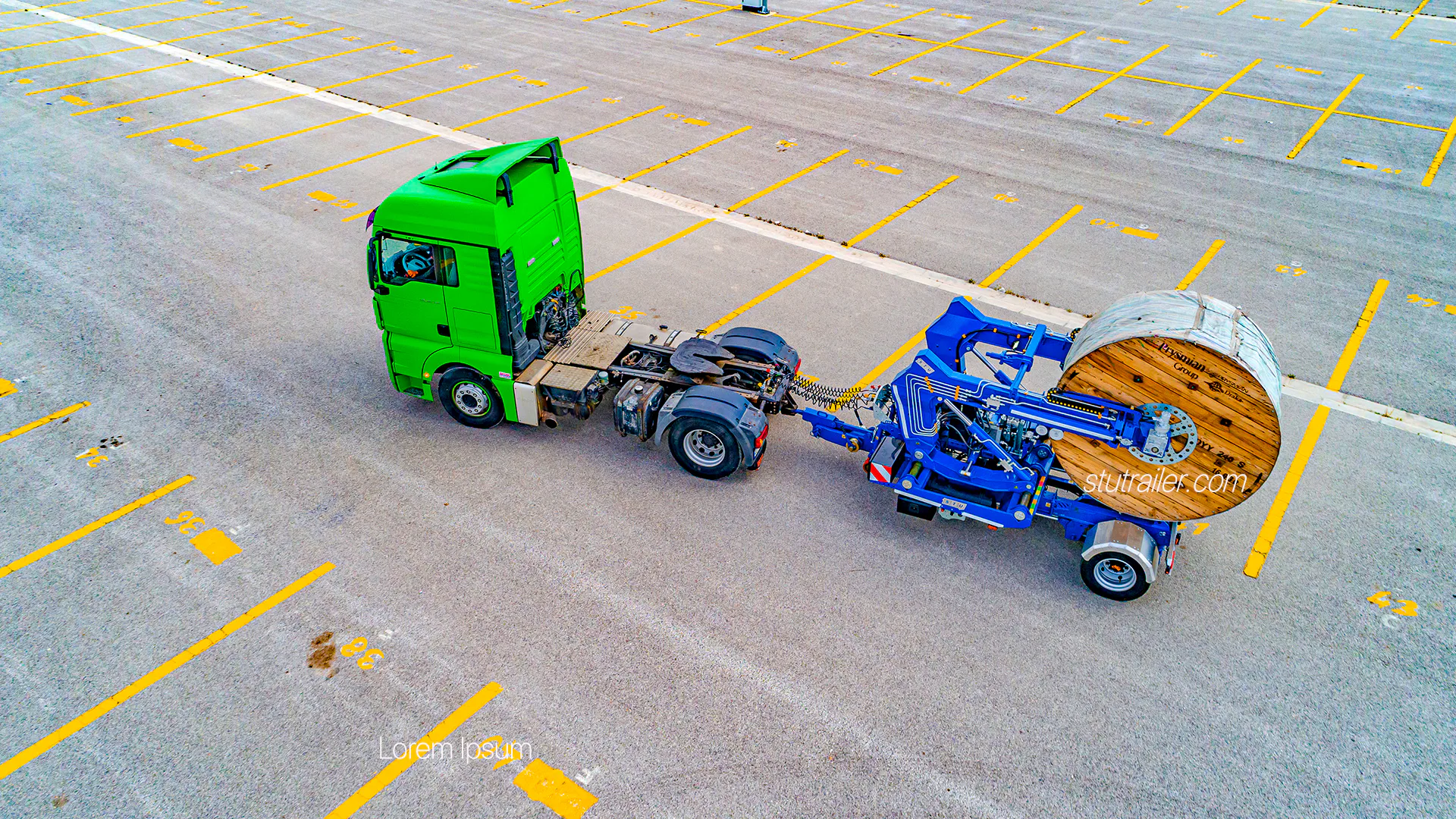

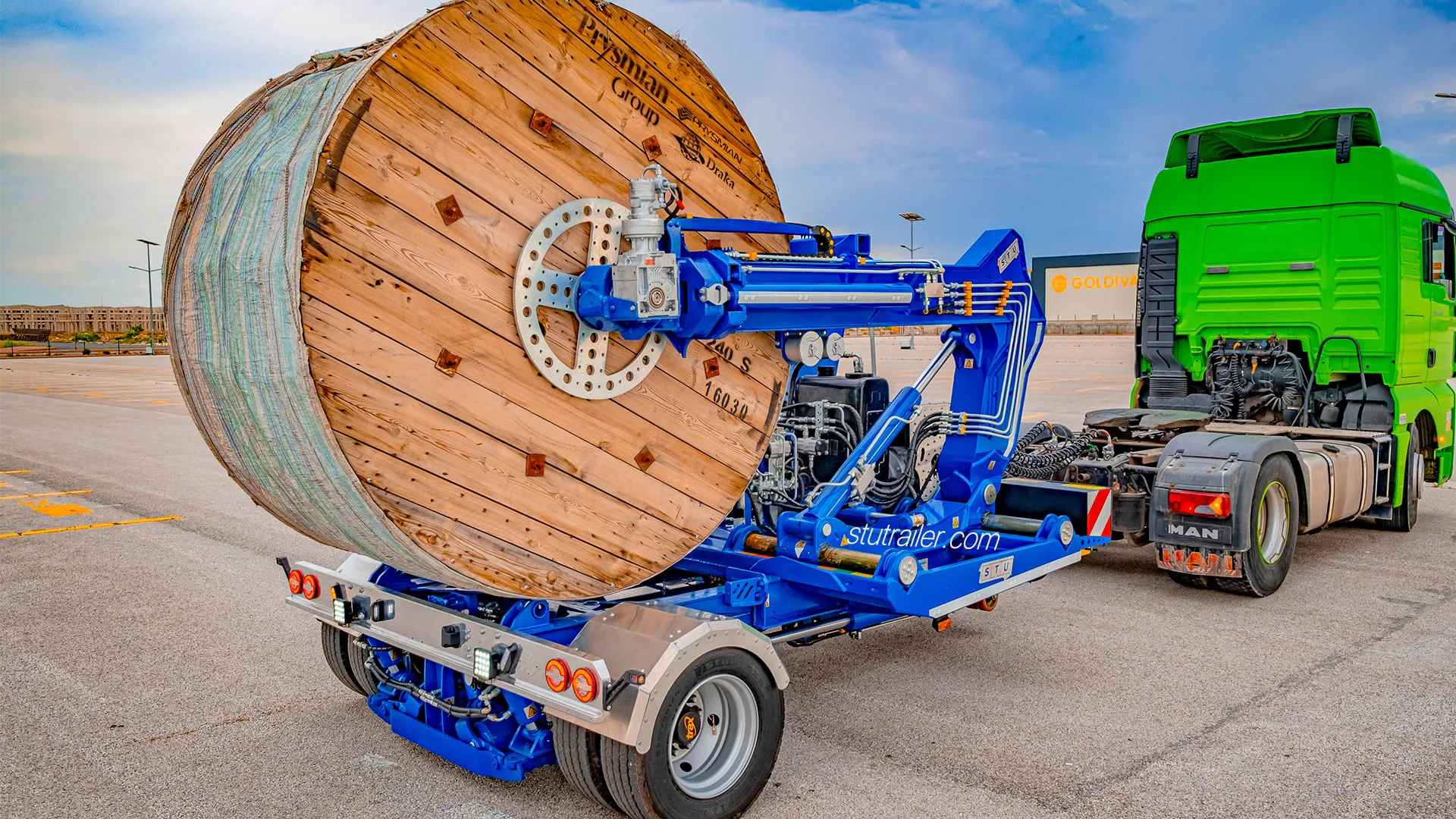

Compact Trailer Layout for Utility and Infrastructure Jobs . The reel cable roller trailer with 1 axle is built for cable drum transport, worksite access and field use. Its extendable platform, hydraulic suspension lifting and stable chassis help operators work with different reel sizes and site conditions.
The extendable chassis structure improves reel compatibility and working flexibility.
Hydraulic suspension lifting supports site handling and reel positioning.
LED road lighting and work lights support transport and night site operations.
Mudguards adjust automatically as the chassis extends.
Extends with the chassis to maintain correct rear lighting position during all working configurations.
Rear hydraulic landing gears for safer, more stable loading and unloading operations.
Integrated safety valves protect the hydraulic system from overload and unexpected pressure drops.
Automatic locking mechanism engages when the arms are widened, prevents uncontrolled movement.
Dedicated toolbox on the trailer for field tools and accessories.

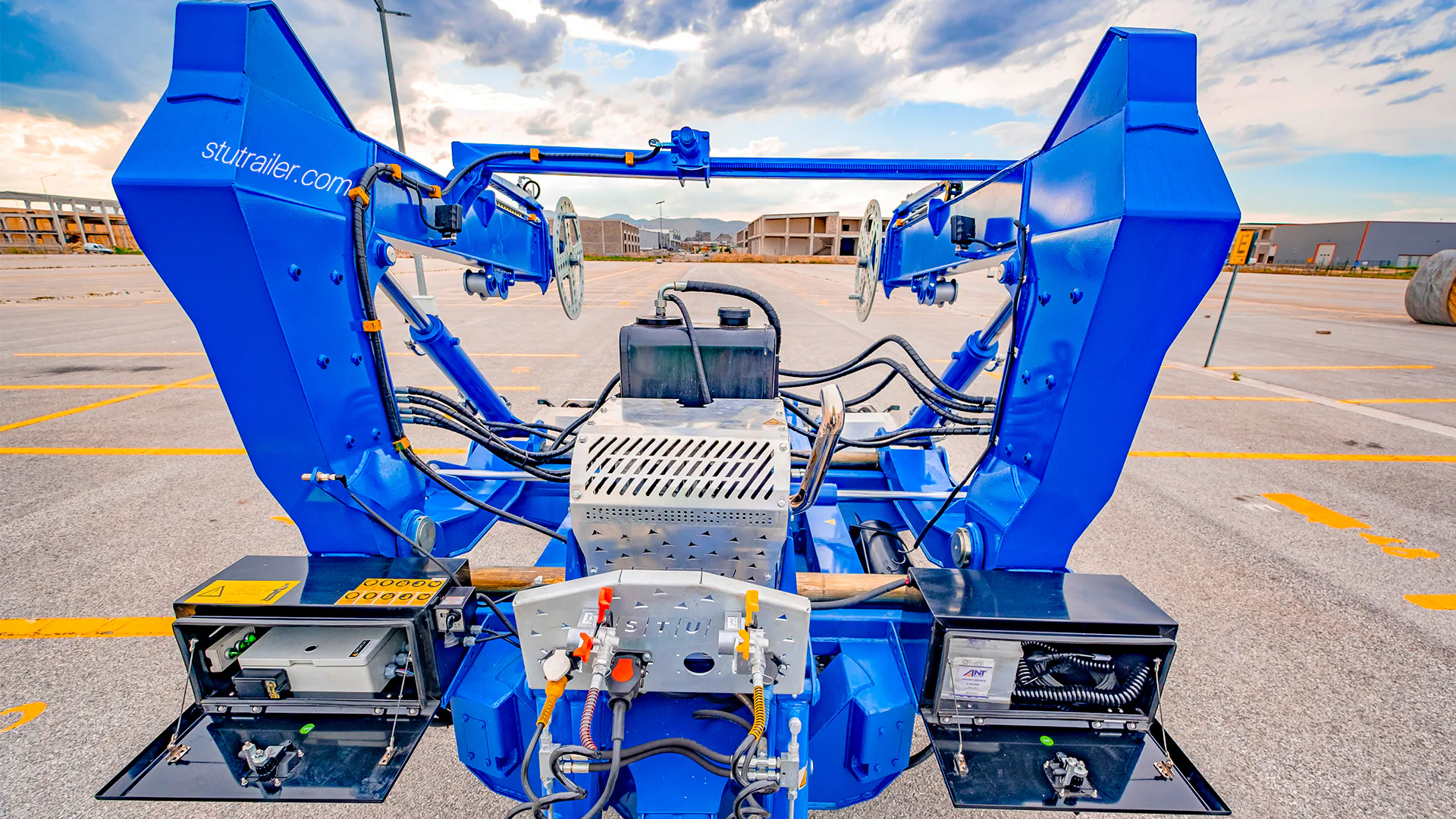

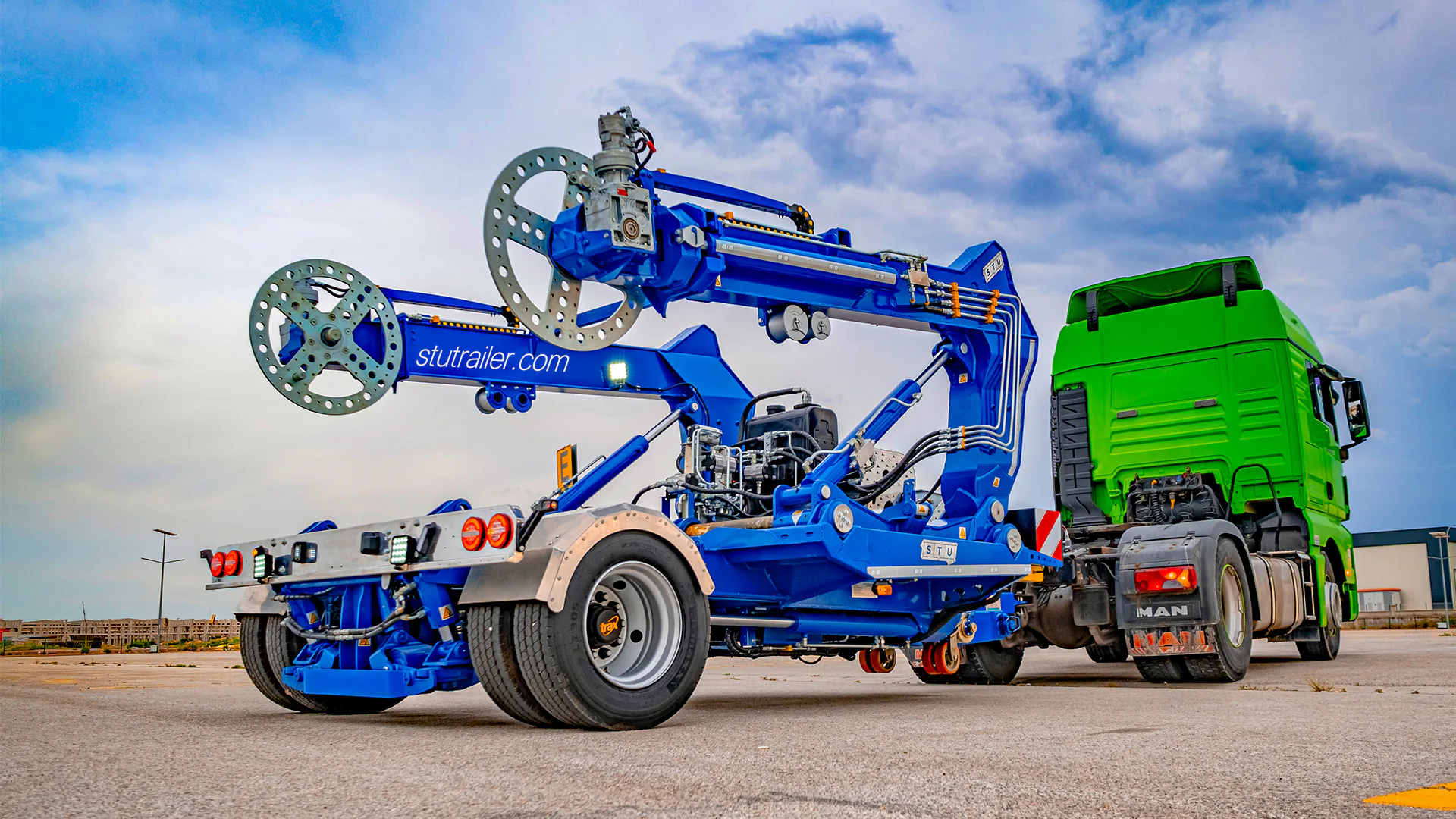

Front Profile
Adjustable Reel Cradle

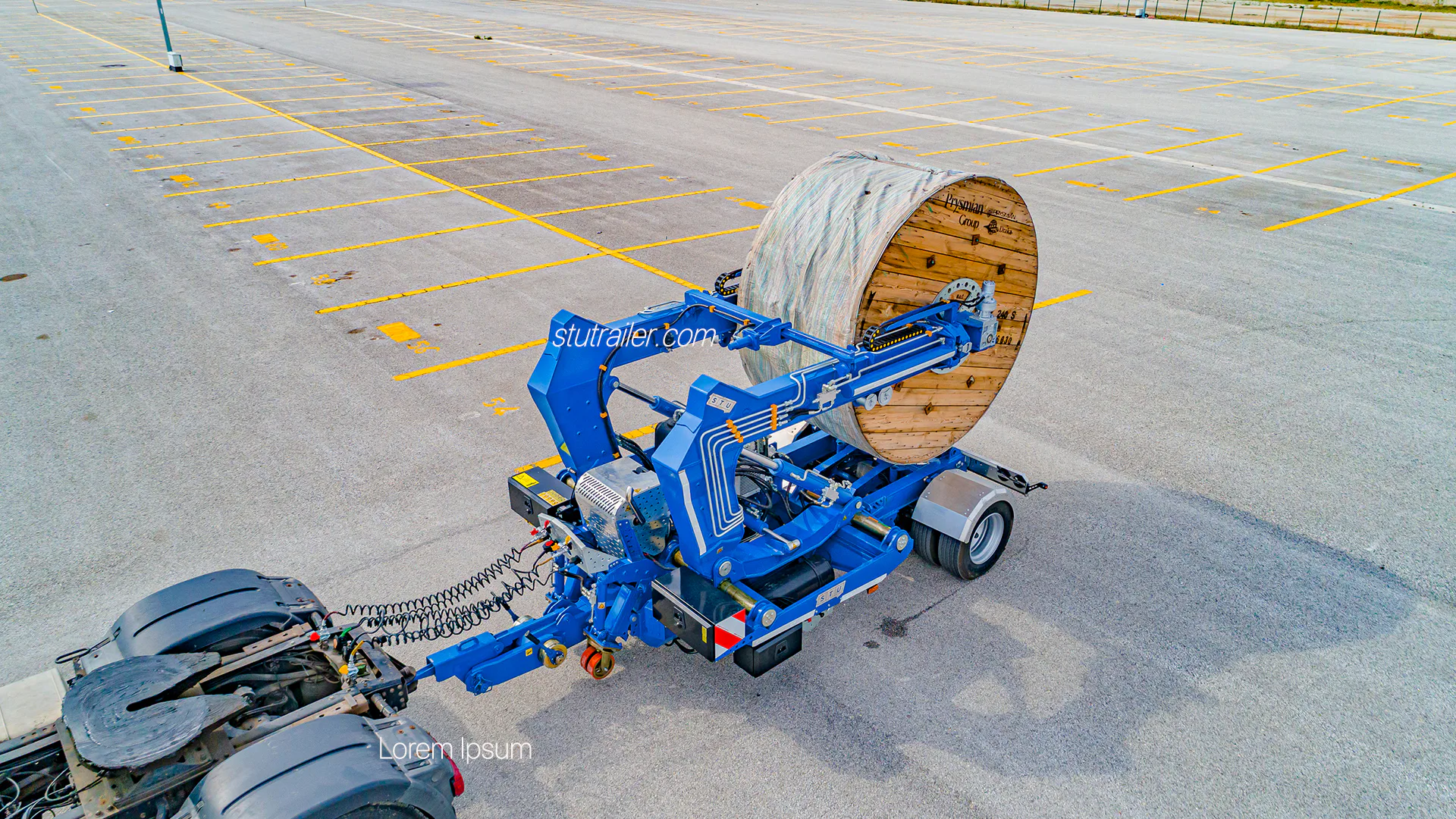

Hydraulic Roller System

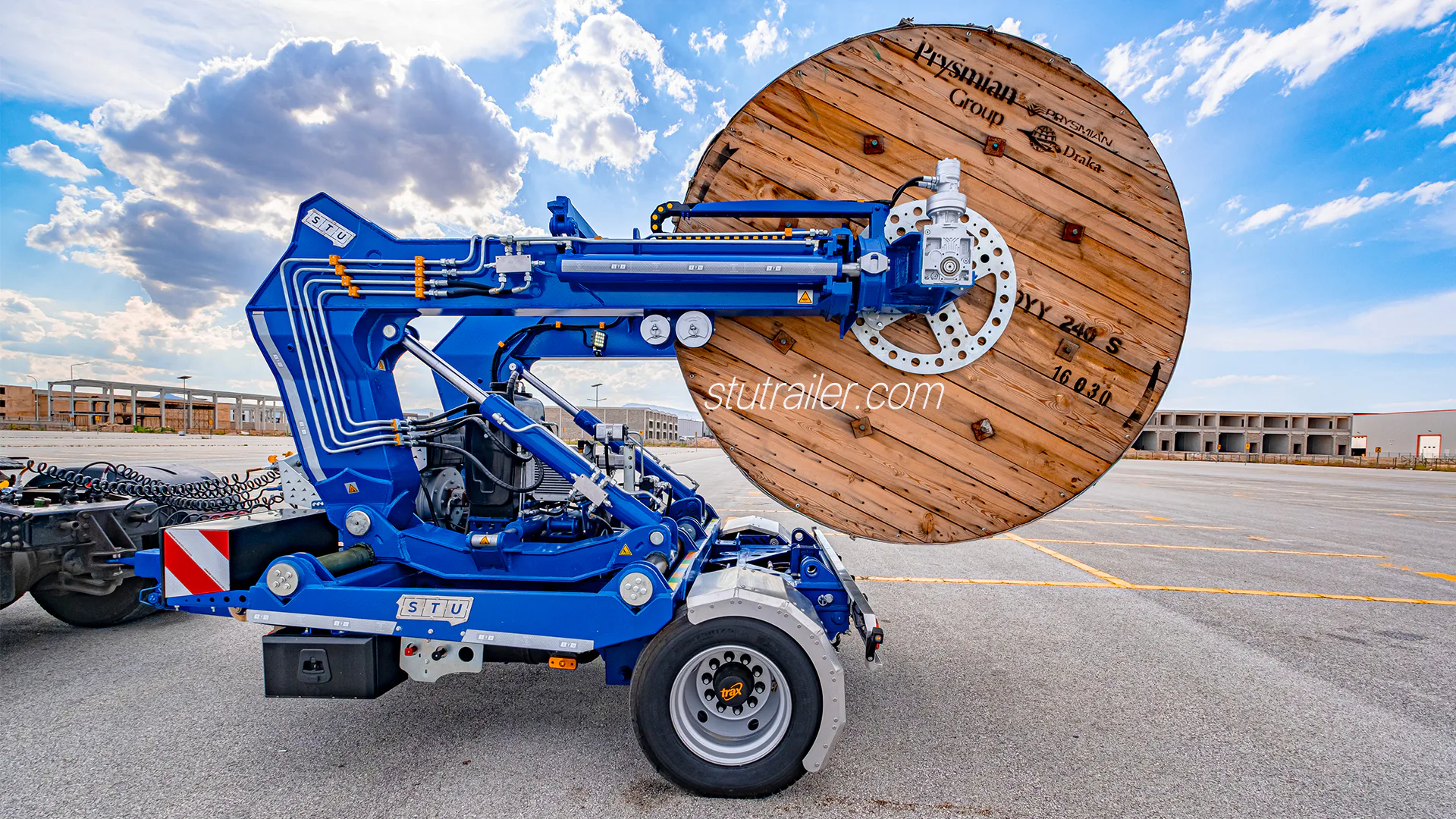

Side View
Cable Reel Handling Overview
In the Field
Global Reach
A reel cable roller trailer is used to transport, lift, position, rewind, and unwind large cable reels or drum reels in infrastructure, power, telecom, and utility projects.
Yes. The trailer is designed with hydraulic arm extensions, hydraulic reel in/out functions, hydraulic rewinding and unwinding, height increase/decrease, arm movement to the left and right, arm widening, and hydraulic suspension lifting.
Yes. All major hydraulic movements are available with remote control via an Autec sensitive joystick system. Manual control is also available.
Total lifting capacity of 7,000 kg. Total width: 2,550 mm, maximum total height: 4,000 mm, empty weight: 6,000 kg ±3%.
Yes. The trailer includes an extendable platform to improve reel compatibility and working flexibility.
Yes. The hydraulic arm system can widen according to reel width, with automatic locking during widening.
Yes. 4 night working LED lights and a full 24V lighting package including Aspöck LED lamps.
Share reel diameter, reel width, cable weight and site conditions. STU will guide the cable reel trailer configuration for transport, hydraulic lifting and cable laying operations.
Trailer Type
Reel Cable Roller Trailer / Cable Reel Trailer / Cable Drum Trailer
Lifting Capacity
7,000 kg
Empty Weight
6,000 kg ±3%
Total Width
2,550 mm
Maximum Height
4,000 mm
Chassis Steel
Strenx 700MC / S960Q (SSAB)
Axle
1× 12 tonne TRAX drum axle
Suspension
Hydraulic suspension
Braking
2S-2M Knorr-Bremse EBS
Engine
Honda GX630 (EURO 5)
Pump
Bosch Rexroth
Remote
Autec sensitive joystick
Drawbar
V.ORLANDI 57F61 trailer hitch
Lighting
Aspöck LED, 4 night working LEDs
