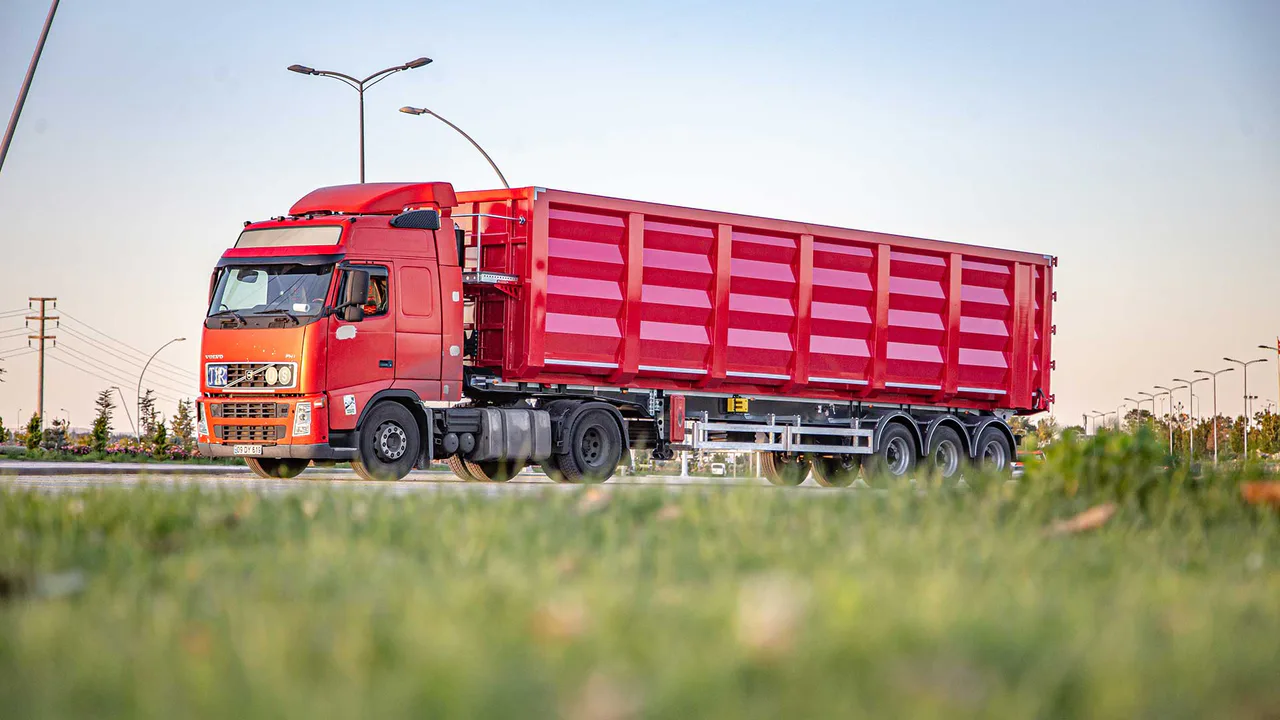

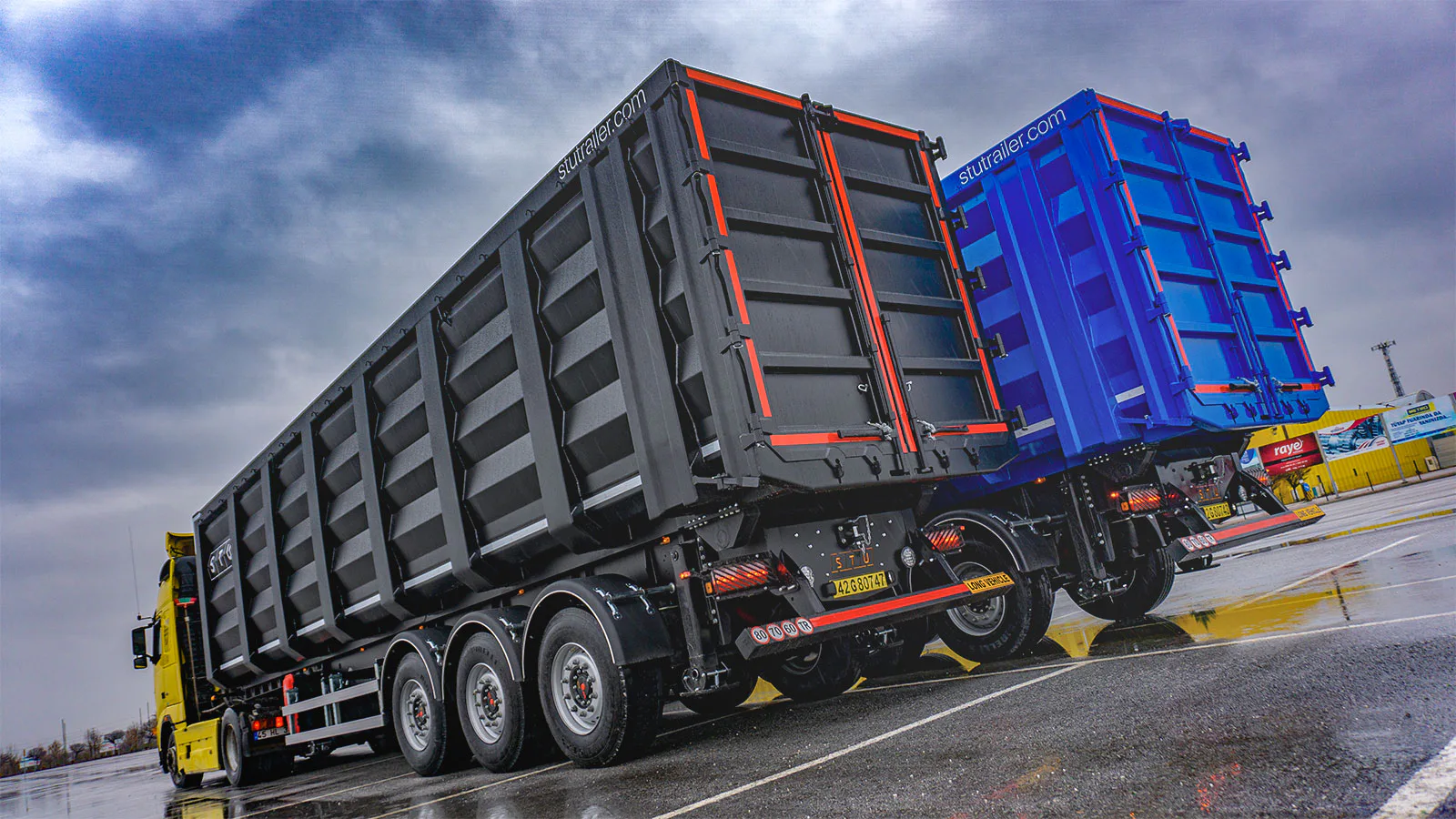

Pool Type | Metal Scrap | Rock Type Tipper Semi Trailers
STU Tipper Trailers are produced for frequent bulk transport where body durability, stable tipping and clean discharge control decide real performance. Choose Pool Type for sand, gravel and aggregates, Metal Scrap for large volume recycling logistics, or Rock Type for quarry and mining duty. Each tipper semi trailer is configured around material density, body volume, axle setup, hydraulic tipping system and destination market requirements.
Three body types: Pool Type in 22, 24, 28 and 32 m³ for sand, gravel and aggregates; Metal Scrap in 50, 60, 62, 71 and 80 m³ for recycling; and Rock Type at 40 m³ for quarries and mining. Rock Type bodies use Hardox in 4/5, 6/8 or 8/10 mm thickness, chosen by the impact level of the stone. Most tippers run on three axles; four axles and twin tyres are available.
The hydraulic tipping cylinder is selected for the body volume and the weight of the material, and the lift geometry is matched to the body type so the load leaves cleanly through the rear. The chassis is ST52 structural steel, or MC700 where tare weight matters: chassis steel compared. Axles come from SAF, BPW, GIGANT, TRAX or MPD. For ready-mixed concrete, see the Concrete Mixer Semi-Trailers.
Swipe to browse
STU produces tipper semi trailers for different bulk materials instead of forcing one body design into every job. Pool Type is selected for sand, gravel and aggregates. Metal Scrap is selected for large volume recycling logistics. Rock Type is selected for quarry, mining and construction duty involving heavy impacts.

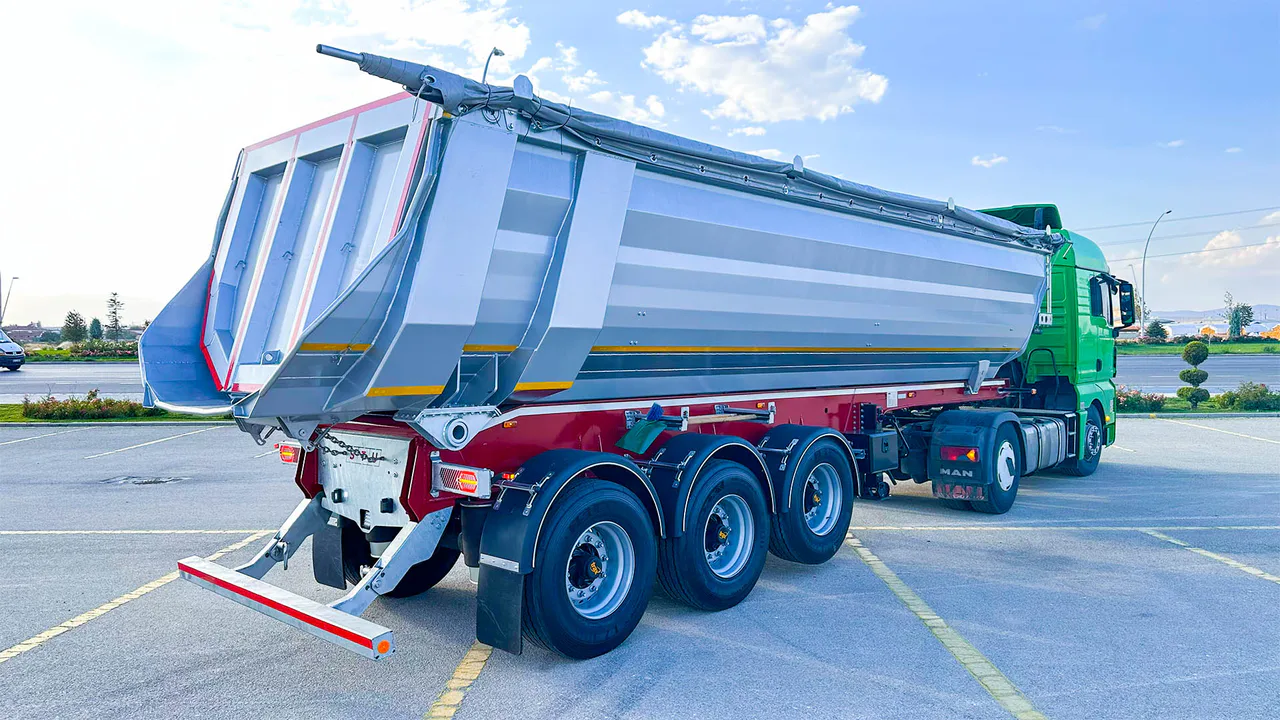

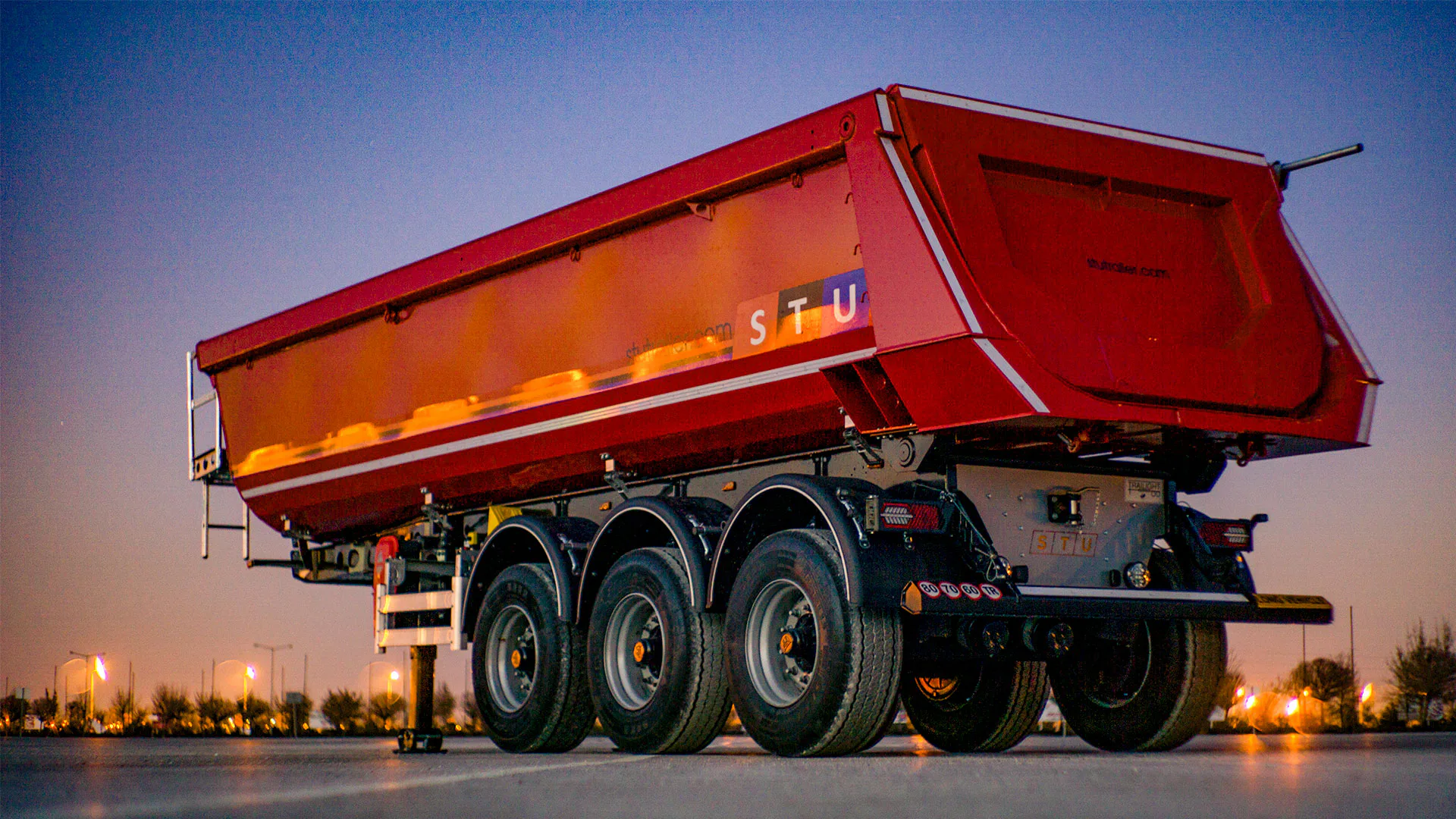

U shaped body for sand, gravel, aggregates and construction materials.

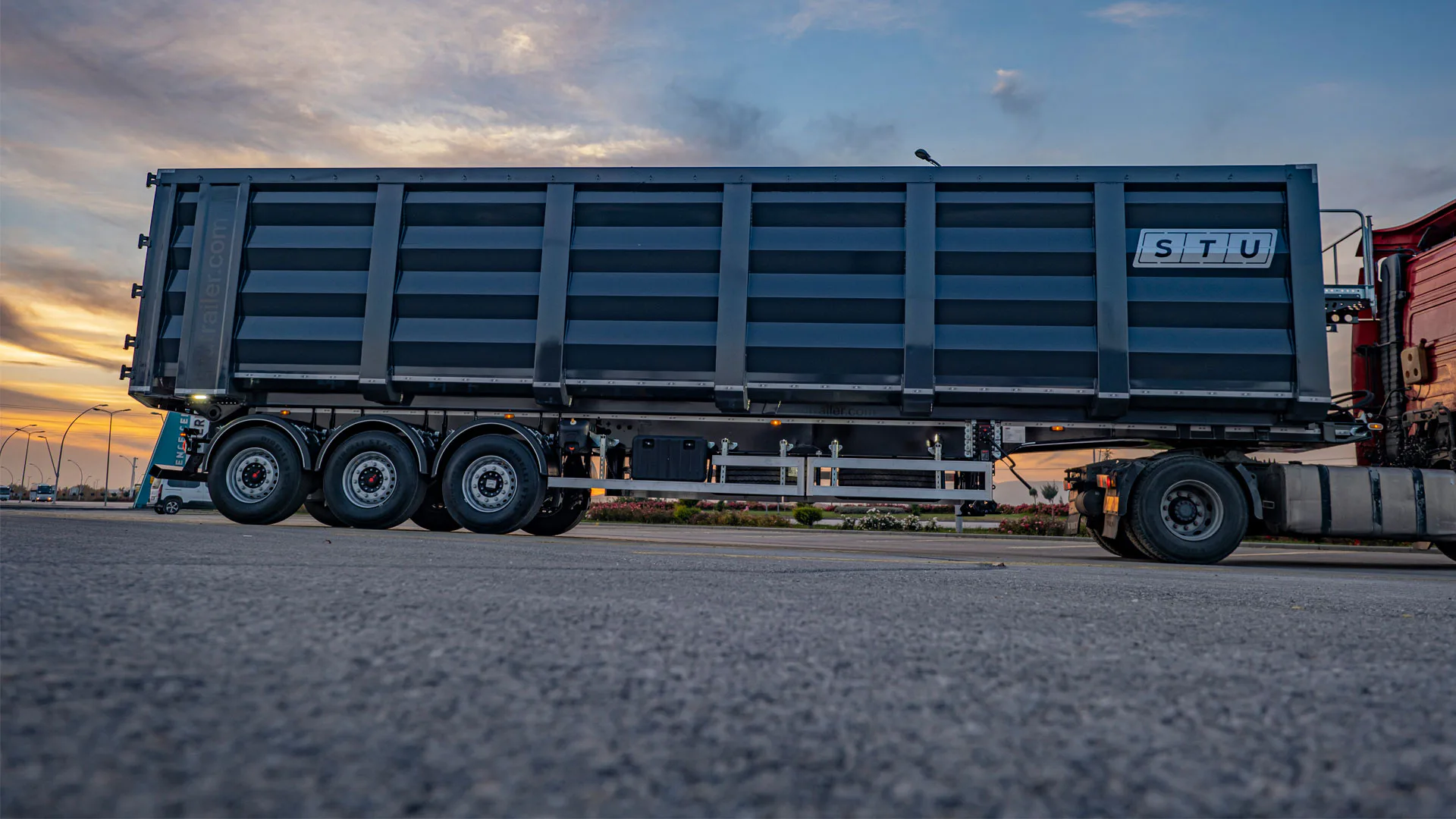

Available in 40, 50, 60, 71, and 80 m³ volumes. Large volume transport for maximum efficiency per trip where abrasion and impact are constant.

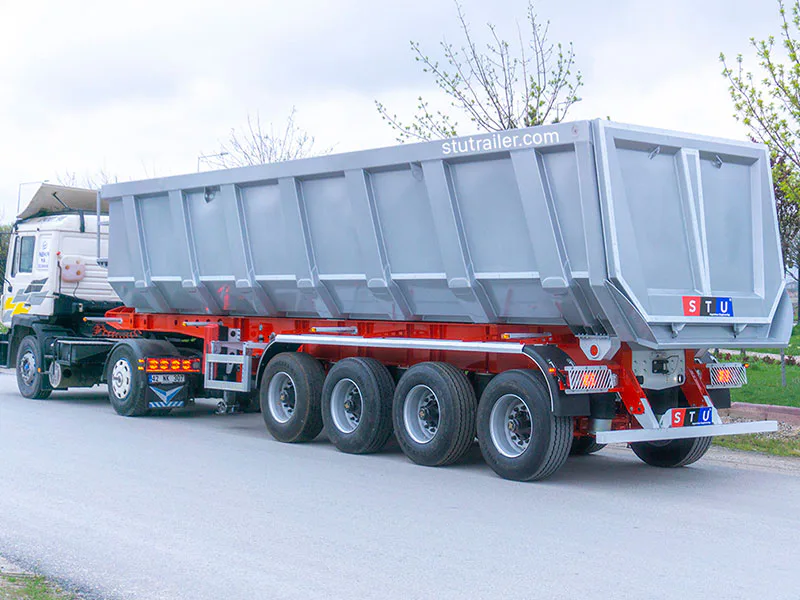

Reinforced body for quarry, mining and rocky construction routes.
The correct tipper body depends on material density, abrasion level, impact profile and unloading frequency. STU configures body volume, steel selection, floor thickness, side wall structure and rear door logic according to the selected application.

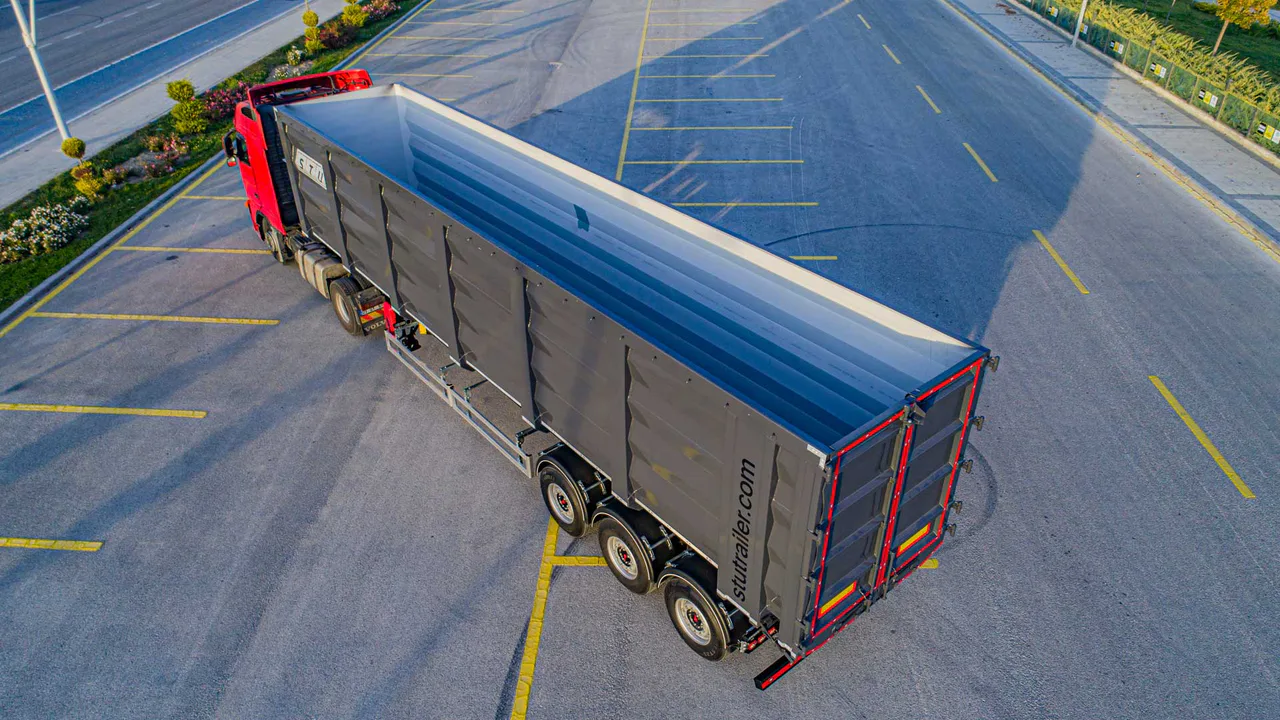

Abrasion resistant body options for scrap, rock and abrasive materials.
Structural chassis design for daily robust use.
Body configuration selected by material type and duty cycle.

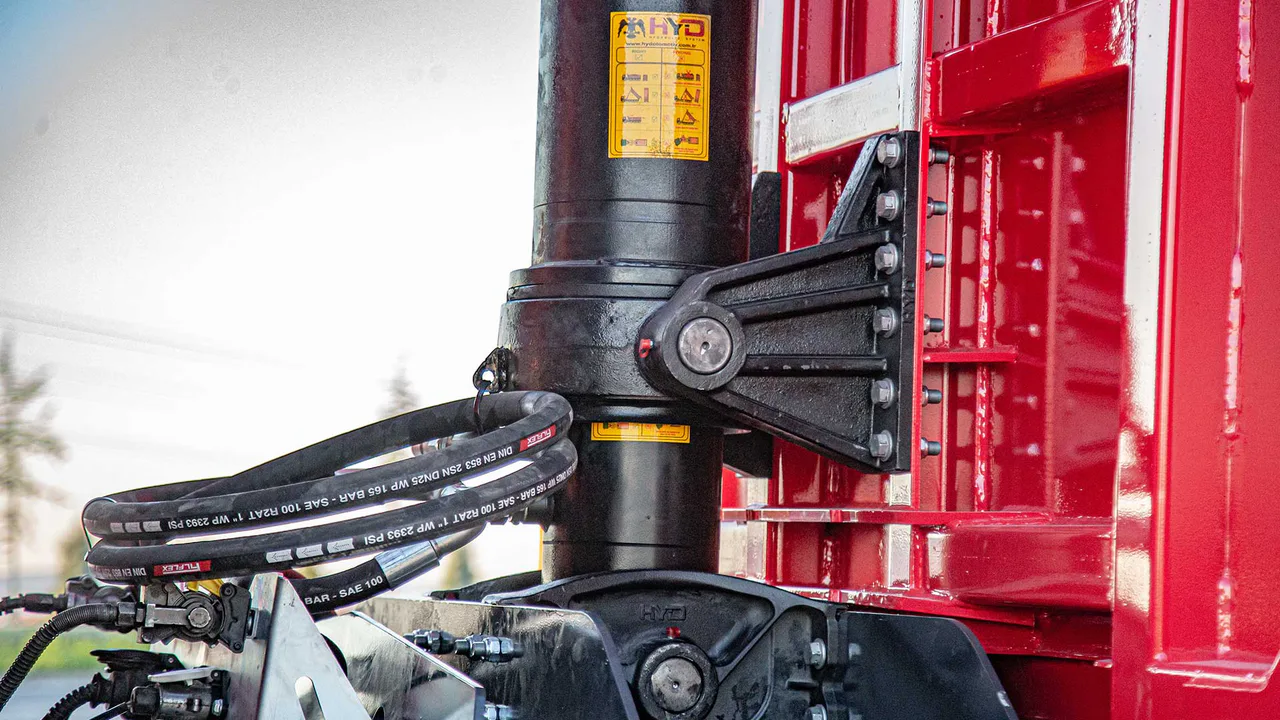

Tipper performance is not only body volume. Stable lift geometry, hydraulic cylinder selection and rear discharge behaviour affect safety, cycle time and material flow. STU configures the tipping system according to body type, route and unloading conditions.
Hydraulic tipping system selected by body volume and material load.
Rear discharge logic supports faster unloading and lower material retention.
Built for repeated loading and unloading in real fleet operation.

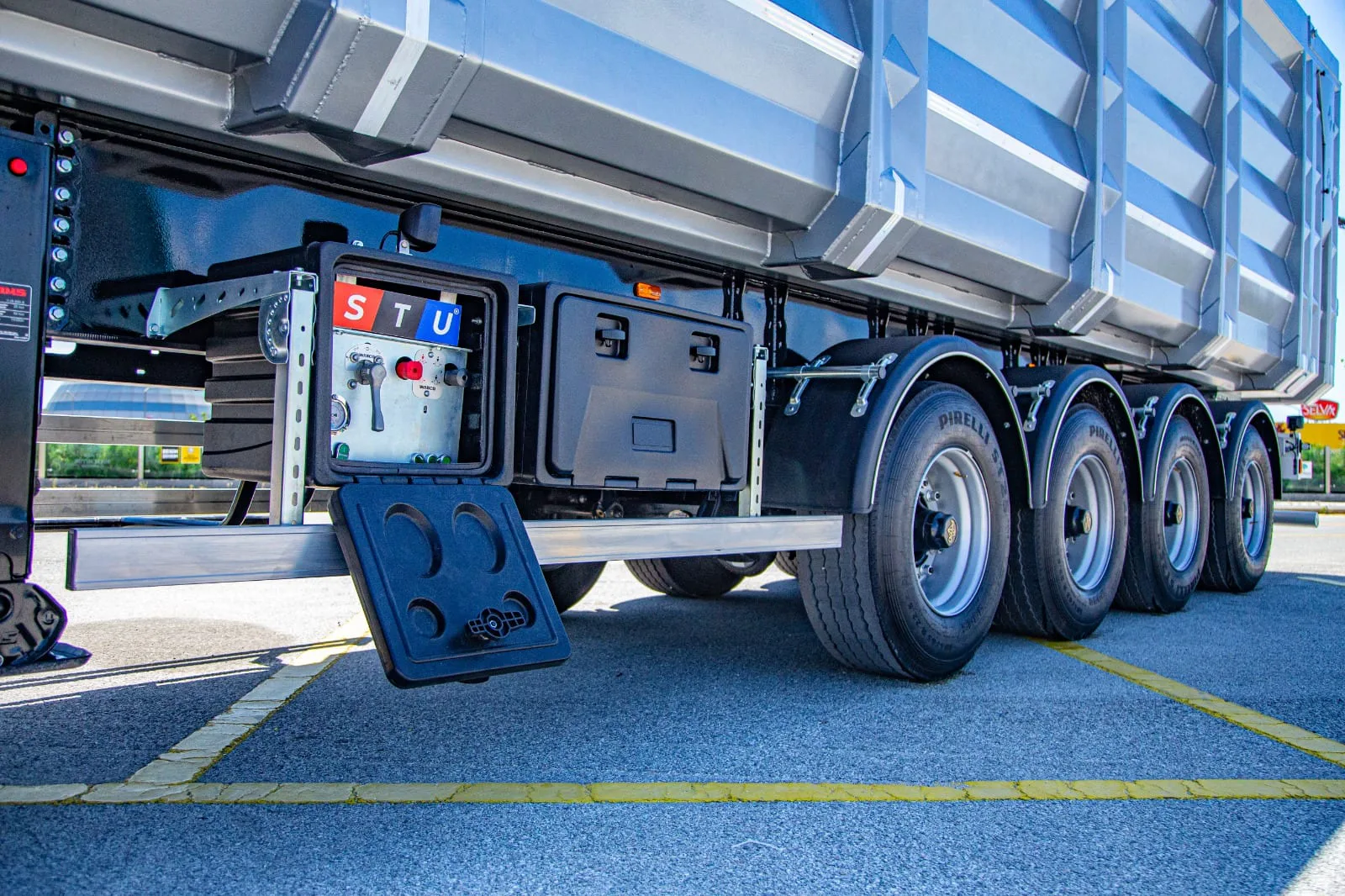

Most tipper semi trailers use a setup with 3 axles, while layouts with 4 axles, dual tyres and bespoke axle solutions may be required for rough routes, heavy bulk cycles and local axle load regulations. STU configures the axle and tyre setup according to the destination market.
Common layout for Pool Type, Metal Scrap and Rock Type tippers.
Available for selected markets and demanding duties.
Selected where road conditions, load rules or regional preference require it.

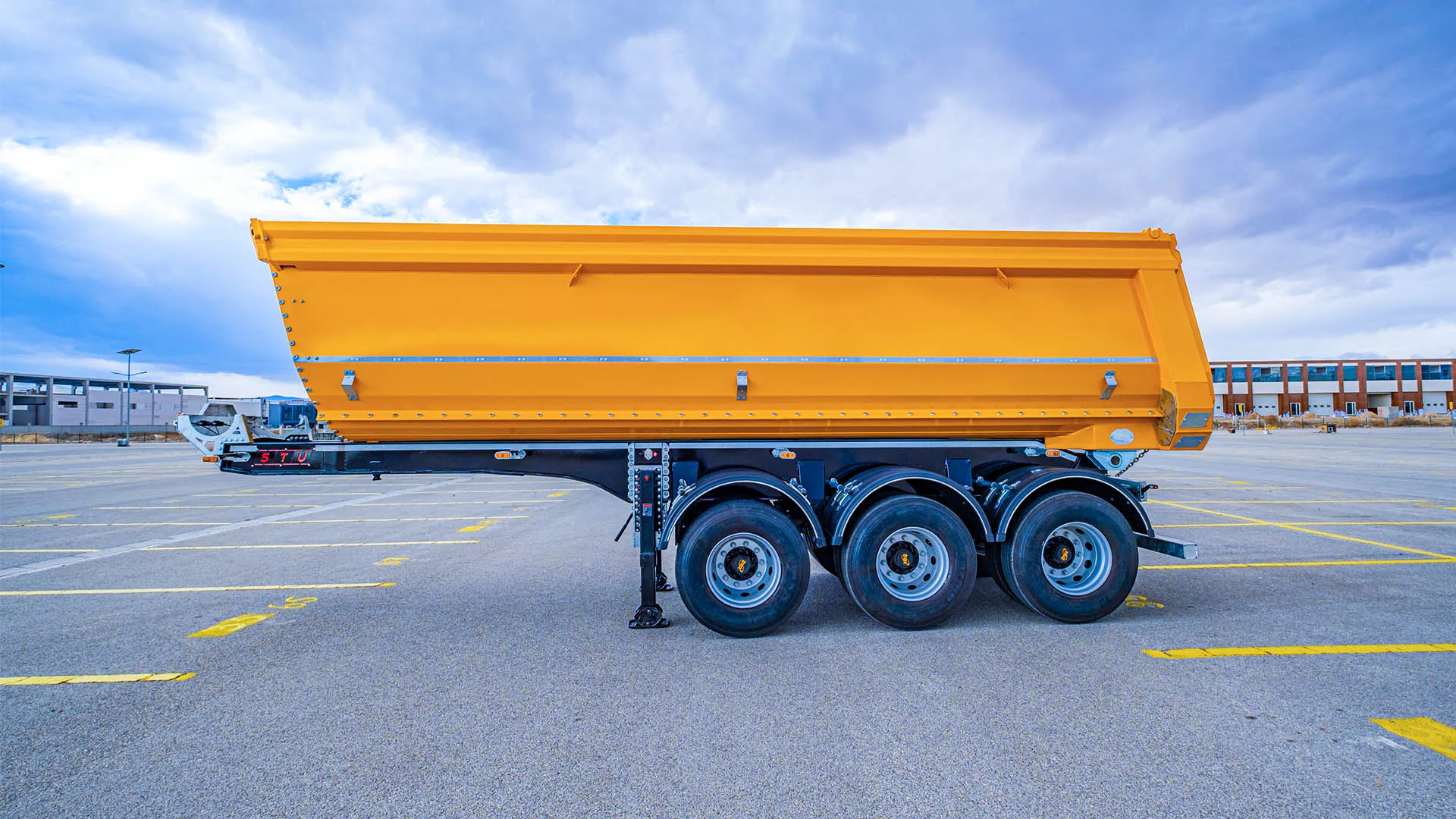

STU is a semi trailer producer from Türkiye. Each tipper trailer is configured around the transported material, body volume, axle setup, hydraulic equipment, component preference, paint finish and target market requirements.
Configuration starts with what the trailer will carry.
Axle, suspension, brake and tyre choices matched to local use.
RAL colour, lighting and safety equipment prepared by specification.
Pool Type Body

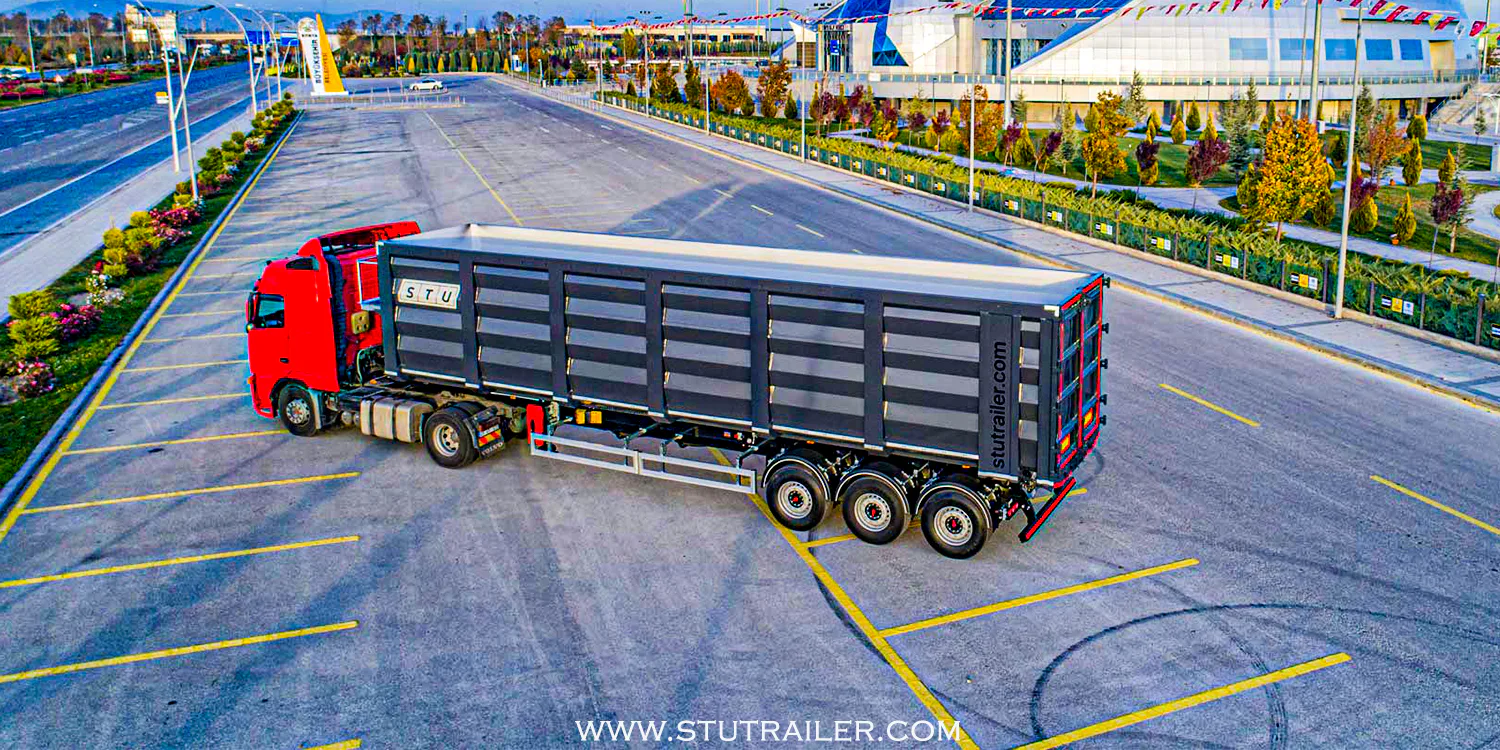

Metal Scrap Body
Rock Type Body

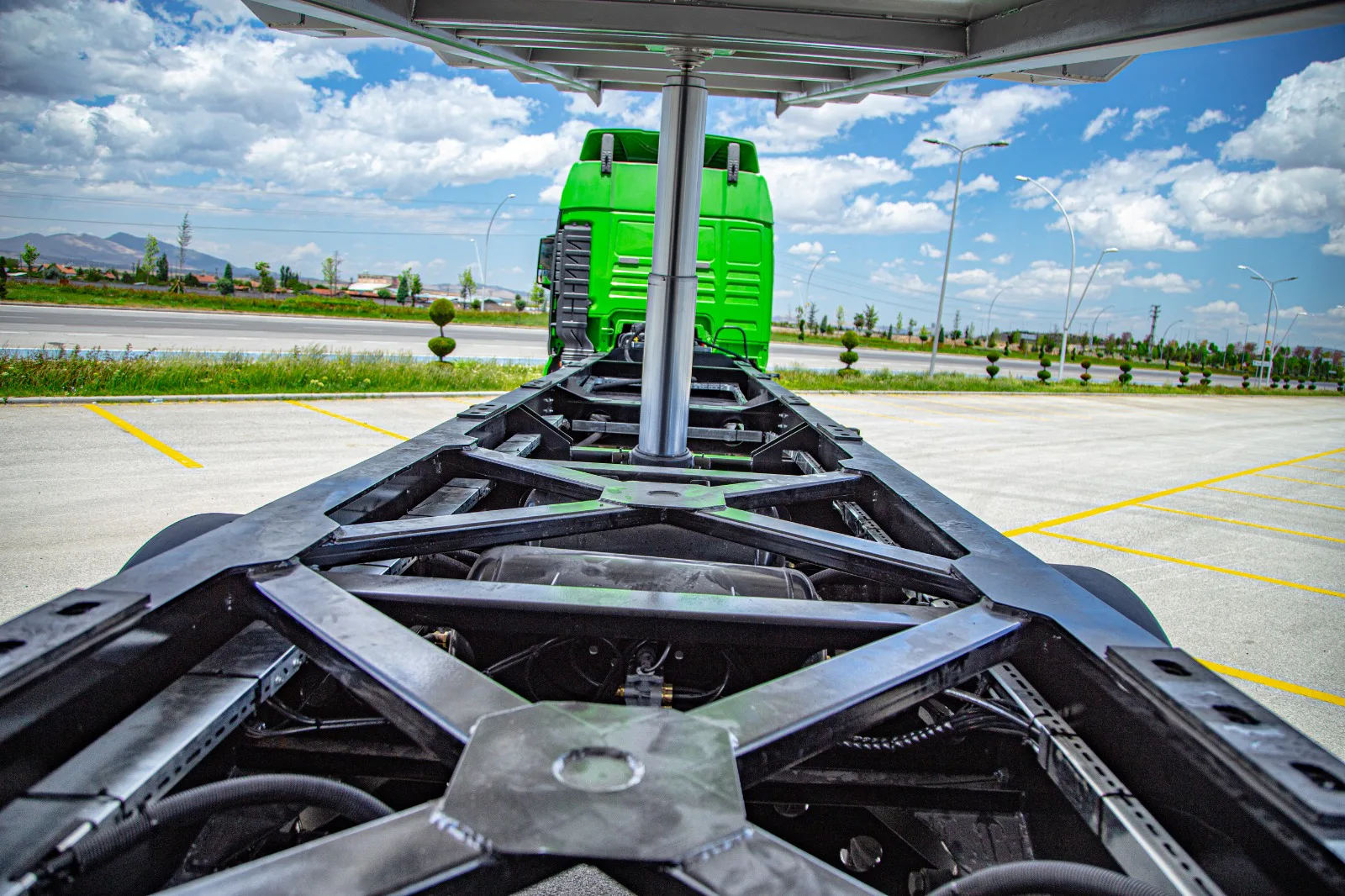

Hydraulic Tipping System
Chassis and Axle Setup

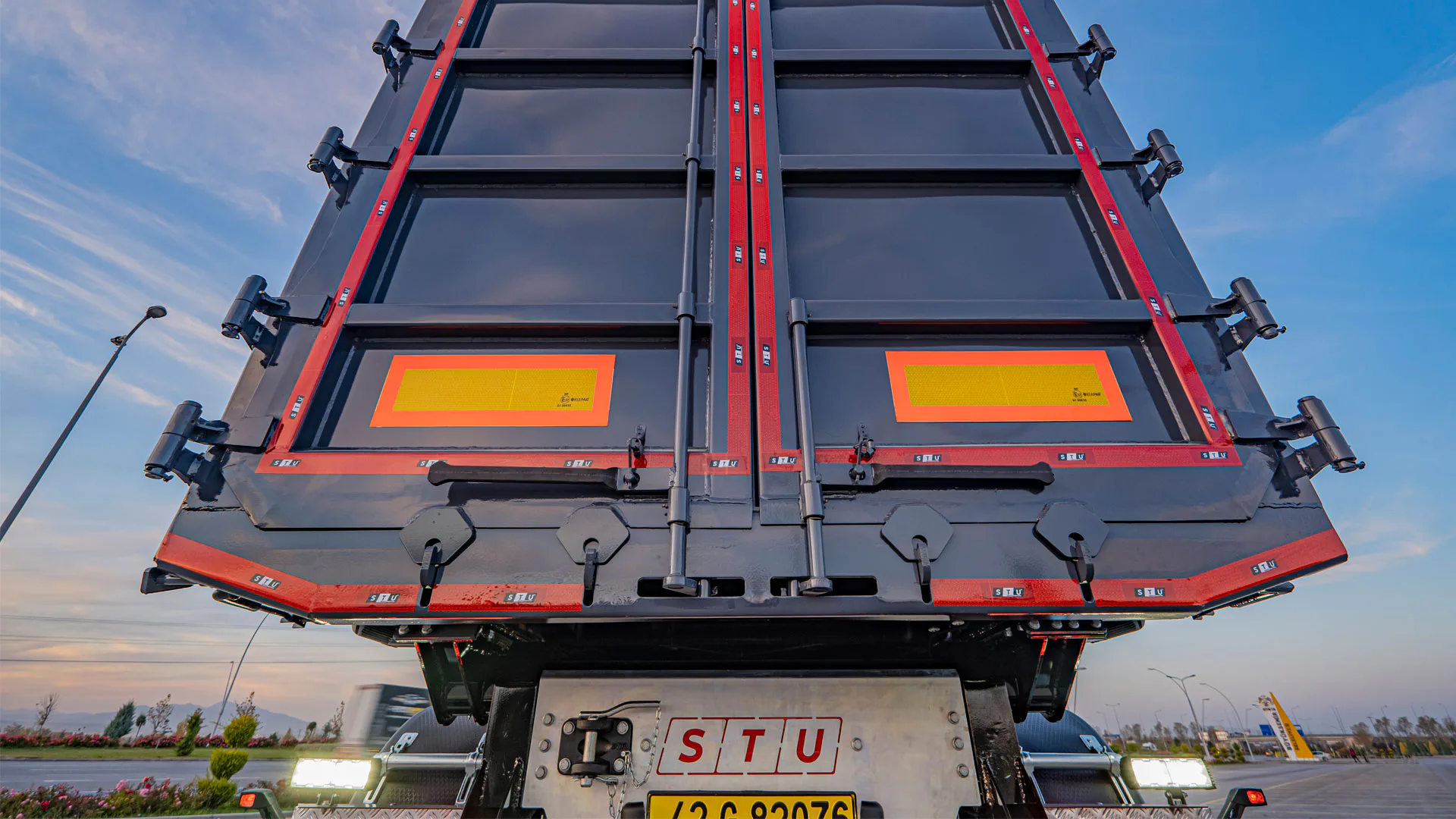

Rear Door and Discharge Area
01
Volumes
22 / 24 / 28 / 32 m³
Typical Axles
3 axles (4 axles available)
Application
Sand, gravel, aggregates
Tyres
Single or Double
Typical Axles
SAF / BPW / GIGANT / TRAX / MPD by specification and service network
02
Volumes
50 / 60 / 62 / 71 / 80 m³
Typical Axles
3 axles (4 axles available)
Application
Recycling, scrap metal
Tyres
Single or Double
Typical Axles
SAF / BPW / GIGANT / TRAX / MPD by specification and service network
03
Volume
40 m³
Hardox Thickness
4/5, 6/8, or 8/10 mm
Typical Axles
3 axles (4 axles available)
Application
Mining, quarries, rocky construction
Typical Axles
SAF / BPW / GIGANT / TRAX / MPD by specification and service network
In the Field
Global Reach
Choose Pool Type for sand, gravel, and aggregate operations. Choose Metal Scrap for recycling and scrap logistics where abrasion and impact are constant. Choose Rock Type for mining, quarries, and rocky construction environments where impact resistance is critical.
It is typically driven by road conditions, duty cycle intensity, and local regulations, especially on rugged routes and in heavy bulk operations.
Thickness is selected based on the density and impact profile of the rocks your operation loads. Lighter stone duty uses 4/5 mm Hardox; moderate duty uses 6/8 mm; heavy duty uses 8/10 mm.
The right tipper volume is not the biggest one. Divide your legal payload by the bulk density of what you haul and you get the body size you actually need. Anything beyond that is carrying air and costing you tare weight.
