Compact Efficiency | 4 Vehicle Transport

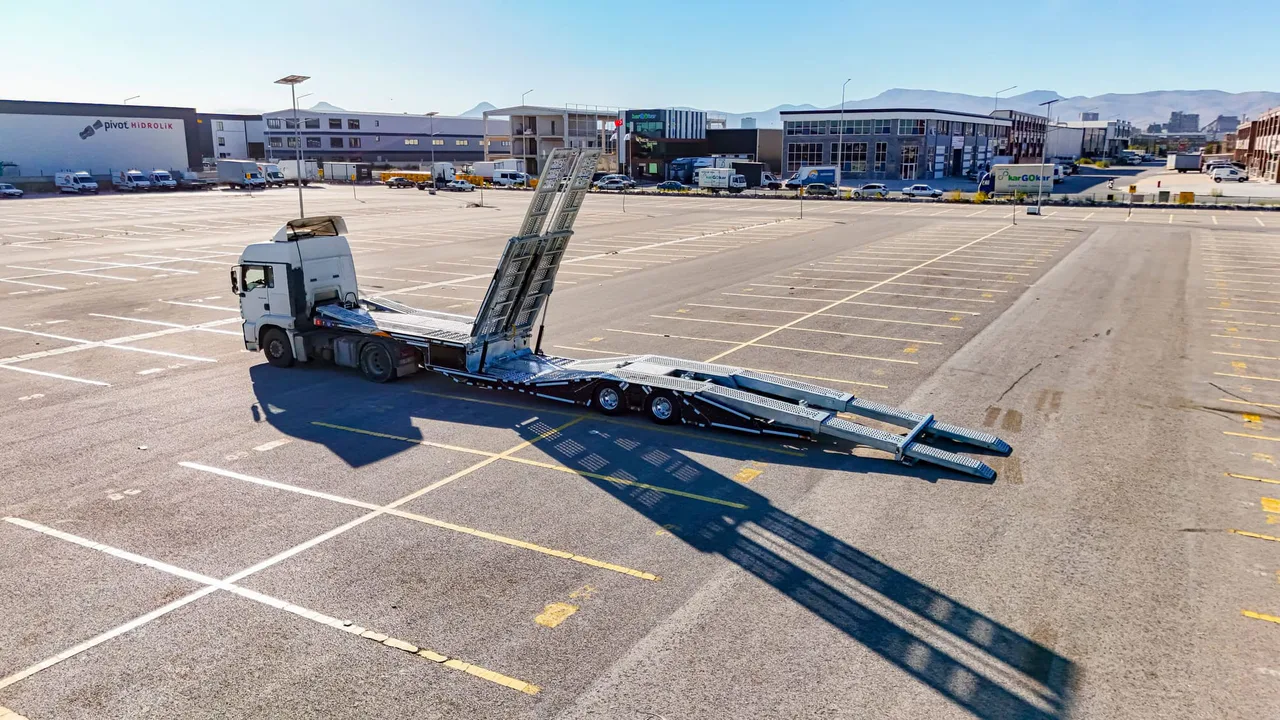

Engineered for efficiency and manoeuvrability. The four car transporter brings the same hydraulic precision to a compact, versatile package that suits urban logistics and regional transport.

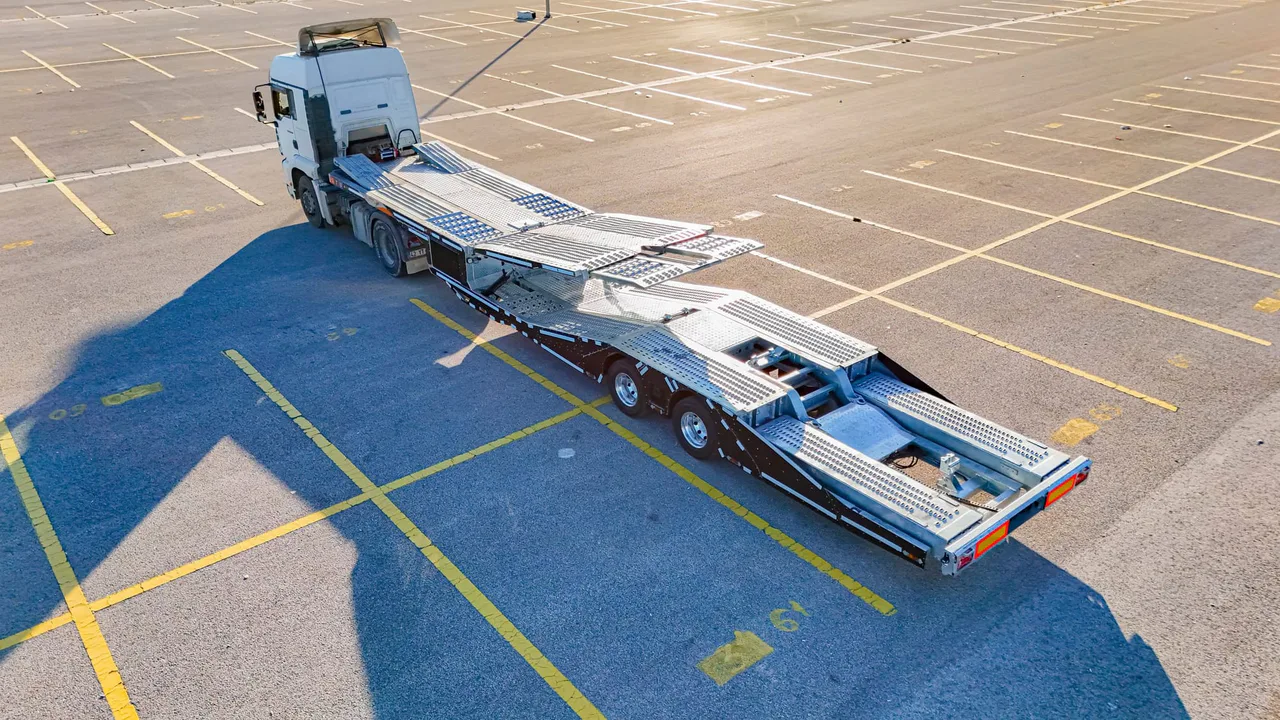

The four-car transporter carries up to four vehicles on a more compact frame than the six-car model, which suits dealership transfers, regional distribution and routes with access restrictions. The chassis is S355J2+N steel, with Strenx 700E available to reduce tare weight, and it is 100% hot-dip galvanised. Steel options: chassis engineering. For a single car, the Mini 1-Car Carrier loads over a ramp of approximately 4°.

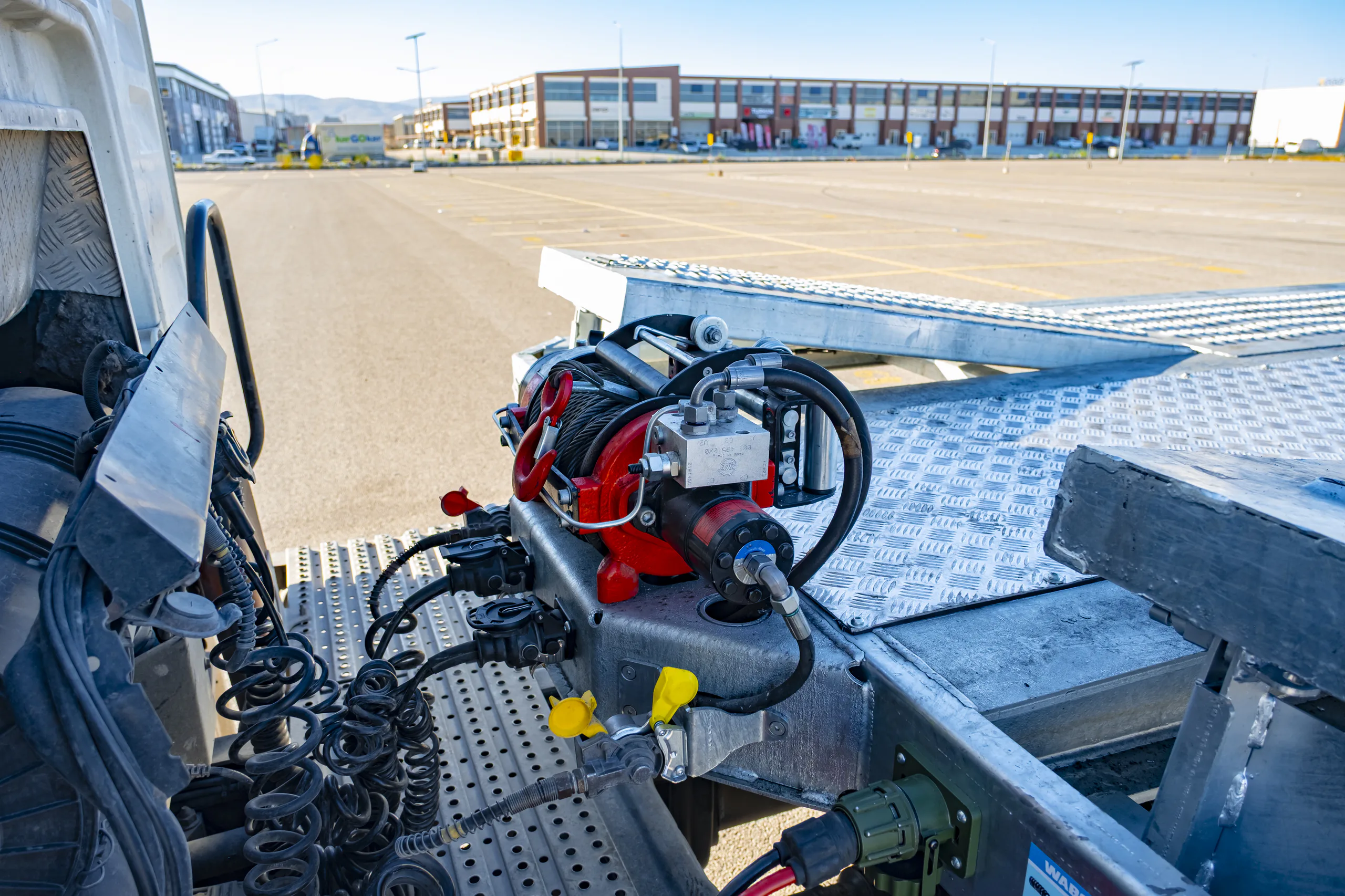

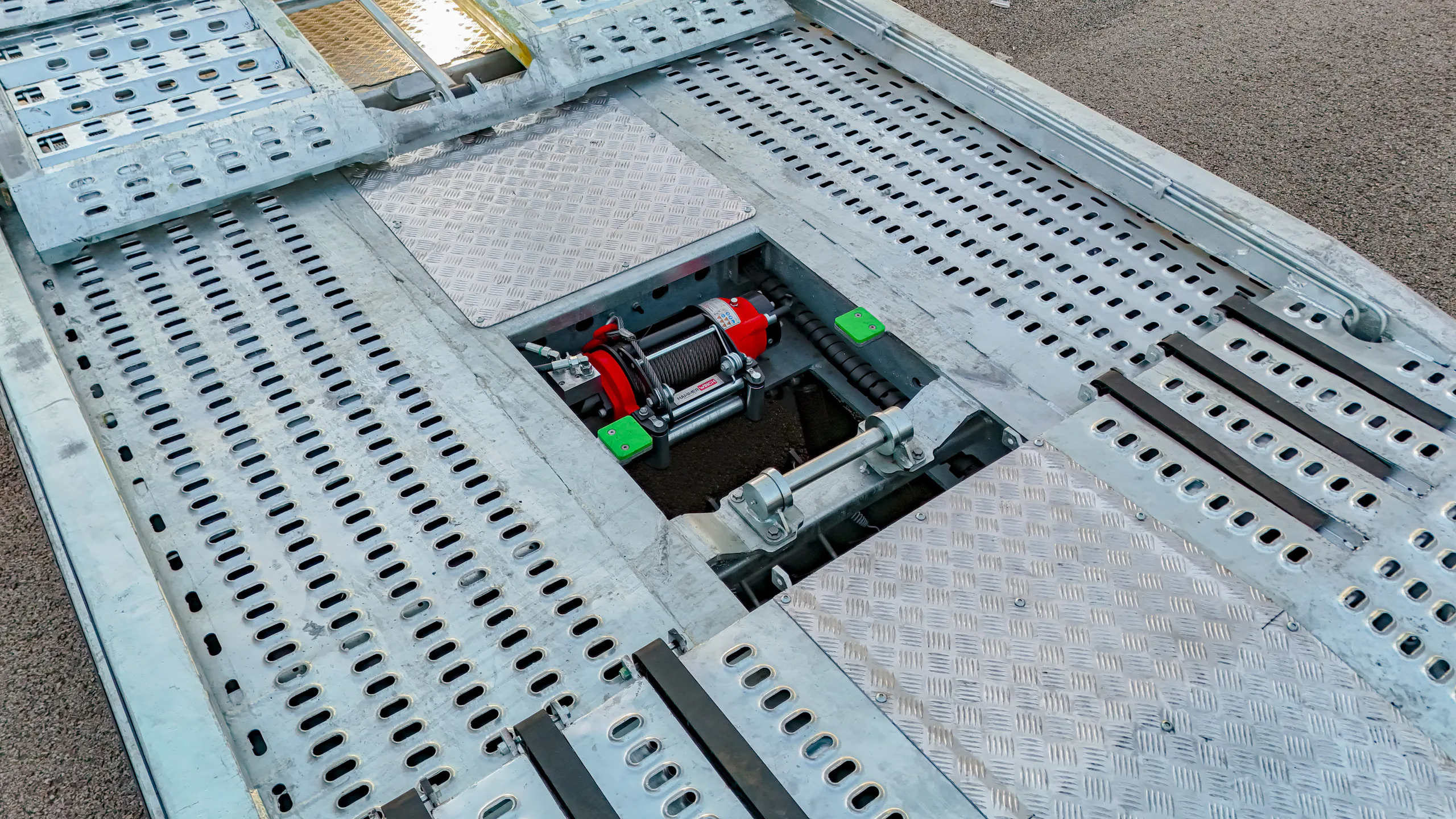

Each platform moves on its own multistage hydraulic cylinders, controlled by a PLC and a wireless remote. Dual protection valves stop a platform from descending if hydraulic pressure is lost, and Hansa-Flex fittings seal the circuit. A hydraulic winch rated at 4,500 kg with a 30-metre steel rope pulls non-running vehicles up the aluminium loading ramps. More on the system: electrohydraulic controls.
Swipe to browse
S355J2+N steel, a grade of high strength, 100% galvanised by hot dipping. Compact footprint for urban logistics.
Chassis made from steel of high strength with optional Strenx 700E upgrade for weight reduction.

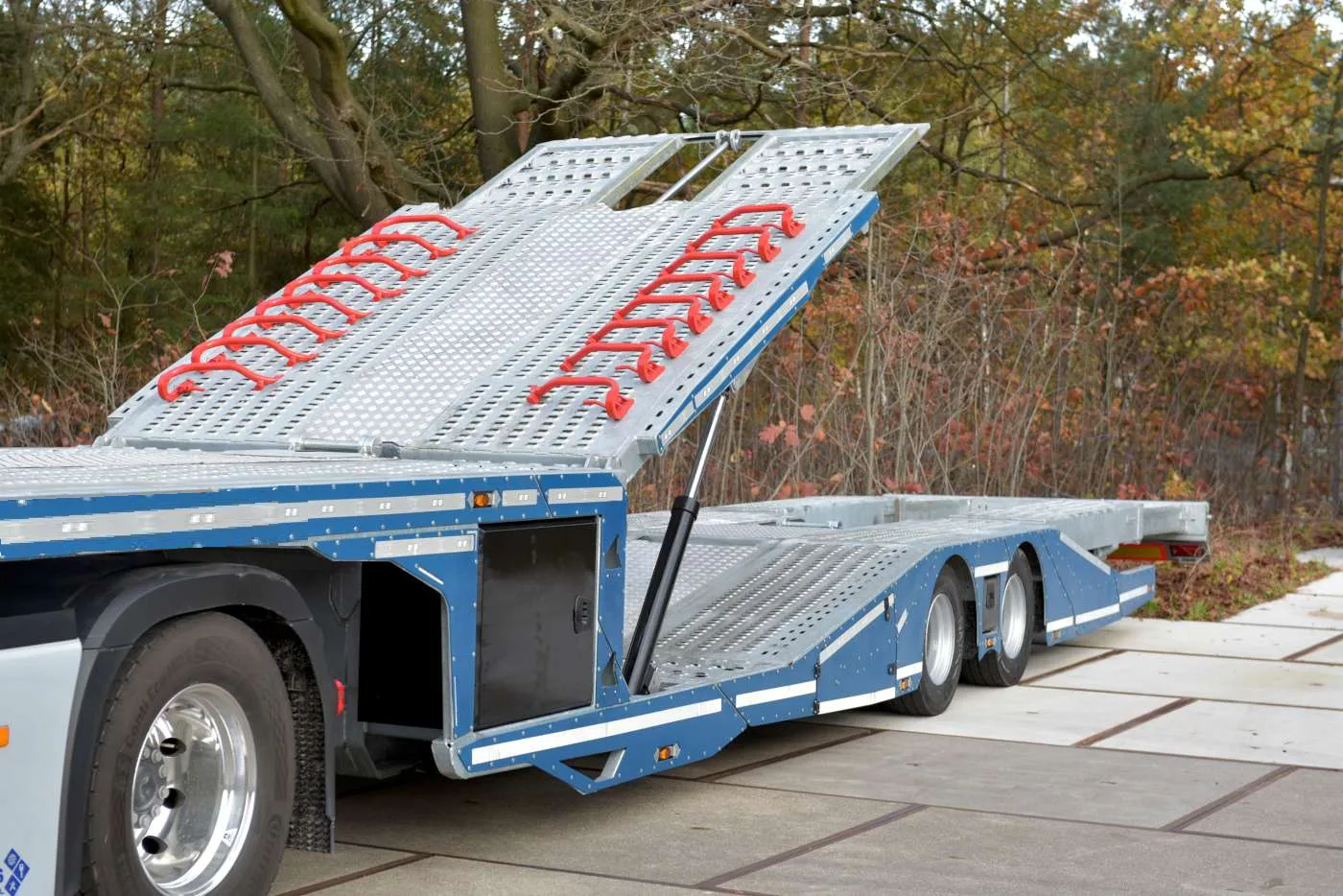

Galvanising by hot dipping is used for lasting protection against corrosion; actual service life depends on environment, use and maintenance, and warranty coverage is defined only by the signed contract.
Optimised dimensions for urban logistics and regional transport.
Independent hydraulic deck control for maximum loading flexibility.
Independent platform control with multistage hydraulic cylinders.
PLC control with a wireless remote, so one operator loads from beside the trailer.
Hydraulic safety architecture prevents uncontrolled platform descent.

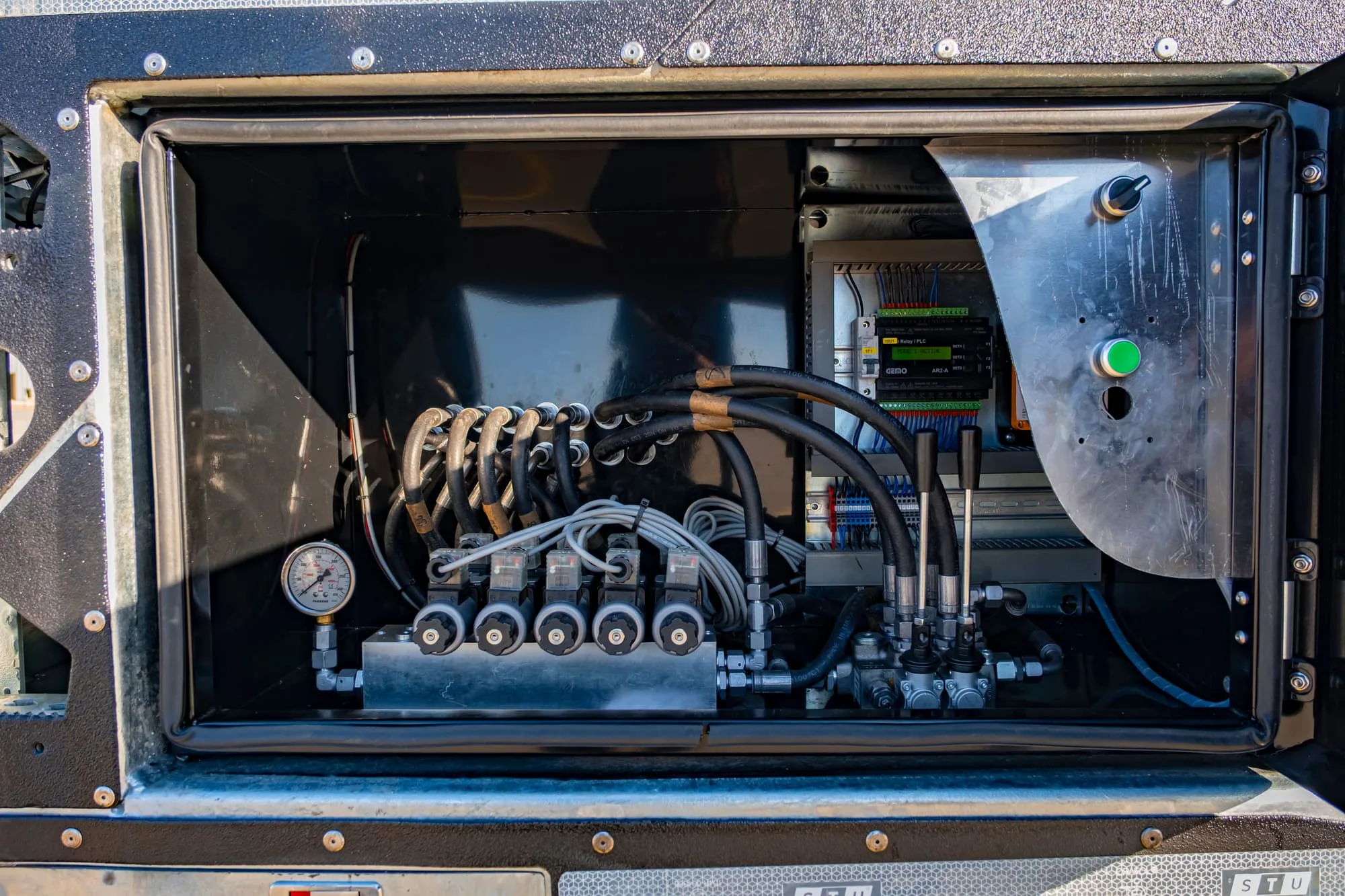

Control Centre

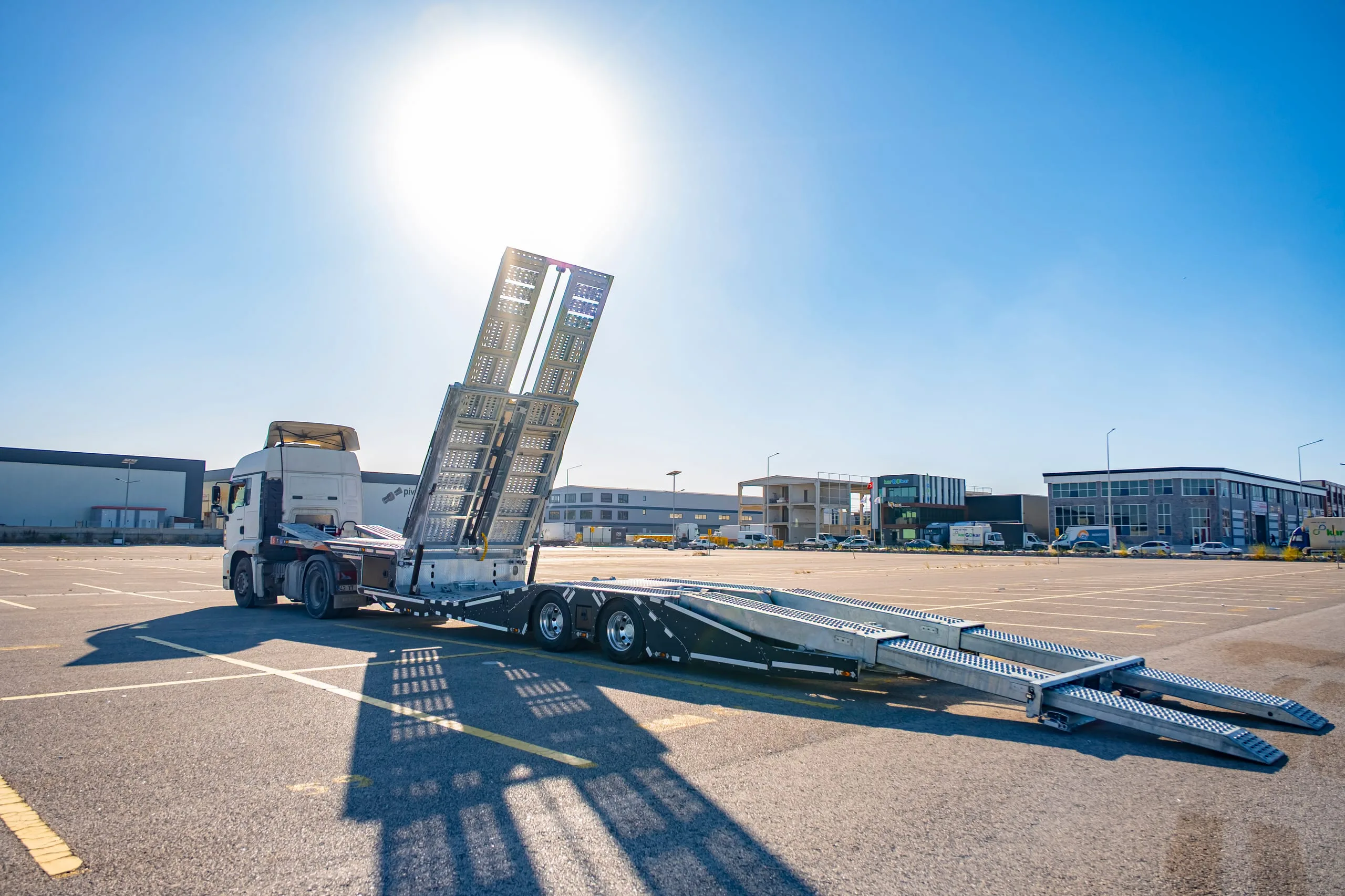

Deck Details

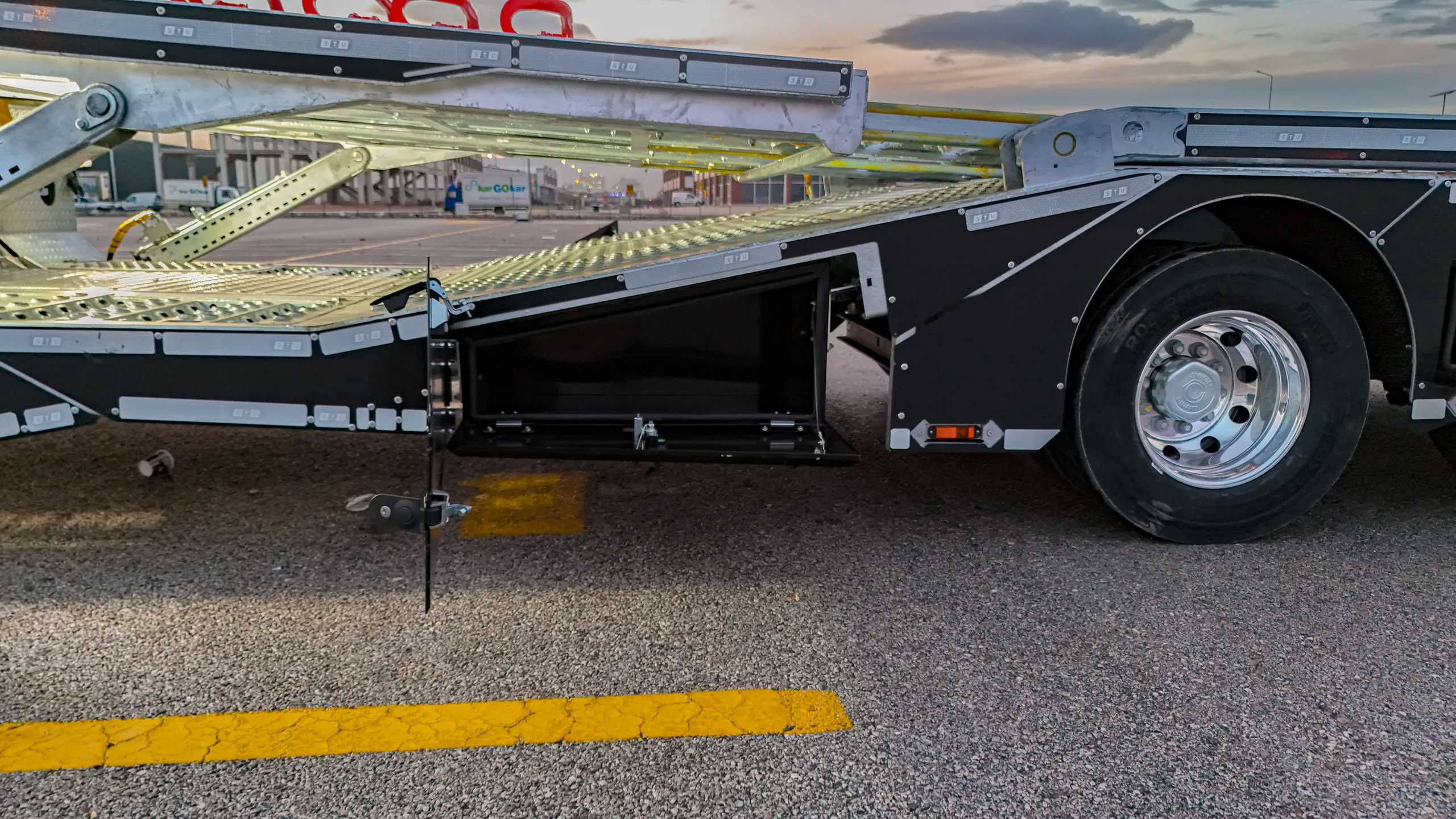

Axle Brands

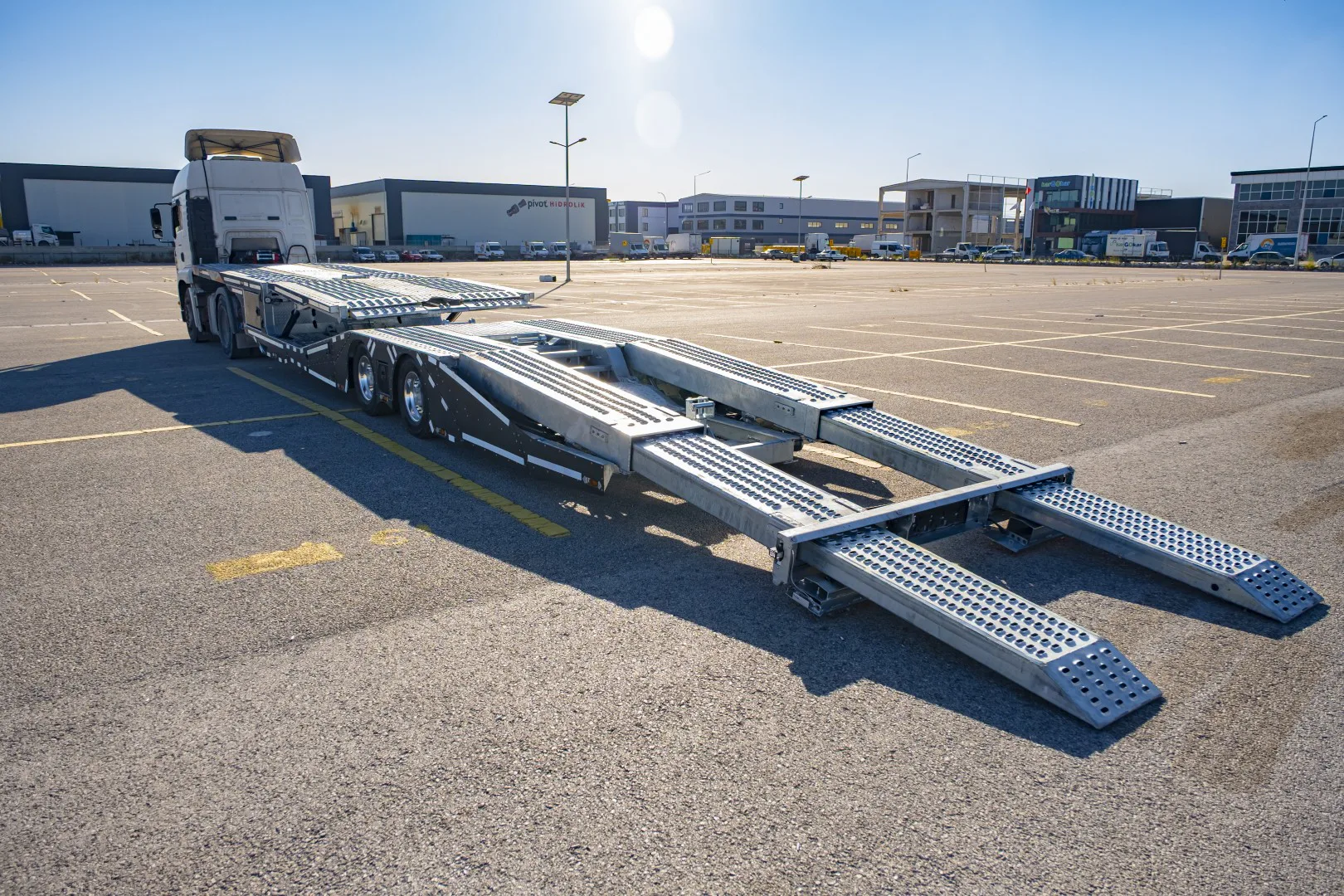

Loading Ramps

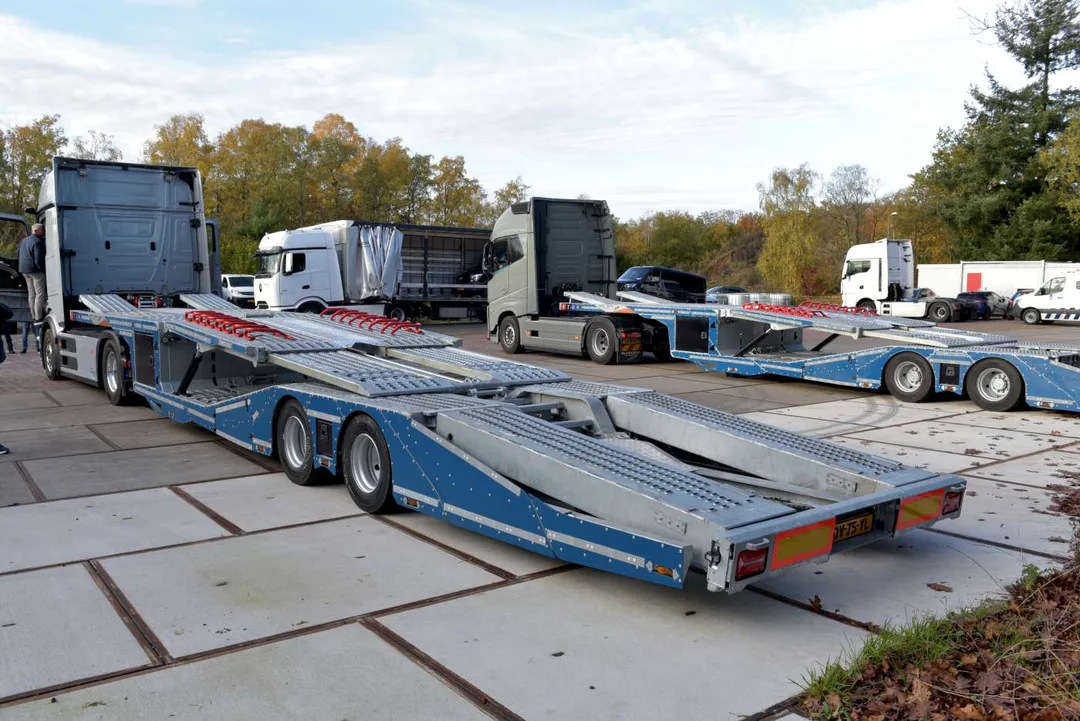

In the Field
Global Reach

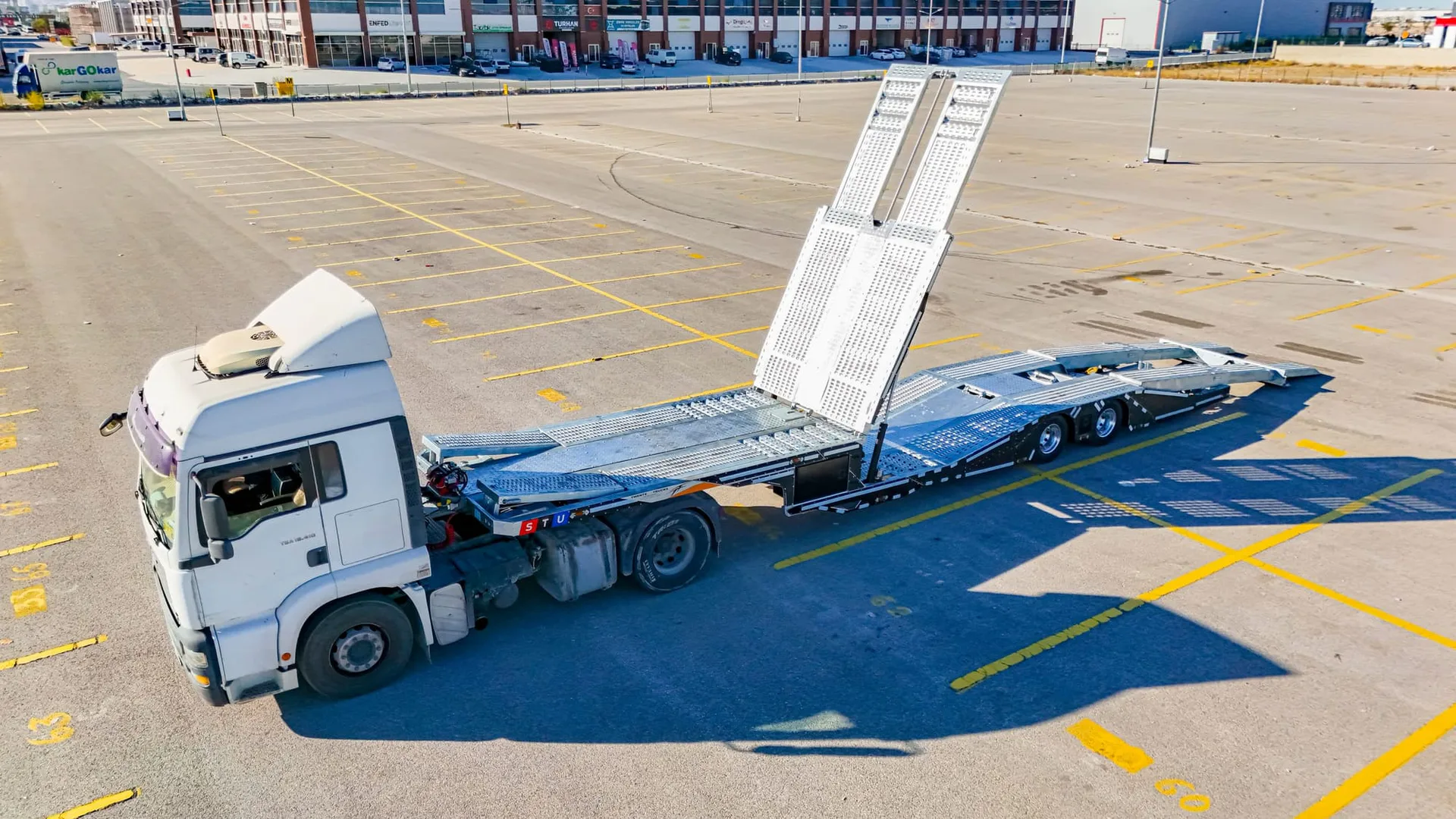

The 4 Car Transporter is a compact hydraulic car carrier designed to transport up to four vehicles simultaneously. It delivers the same hydraulic precision as the model for six cars in a more compact, manoeuvrable package, suited to urban logistics and regional transport.

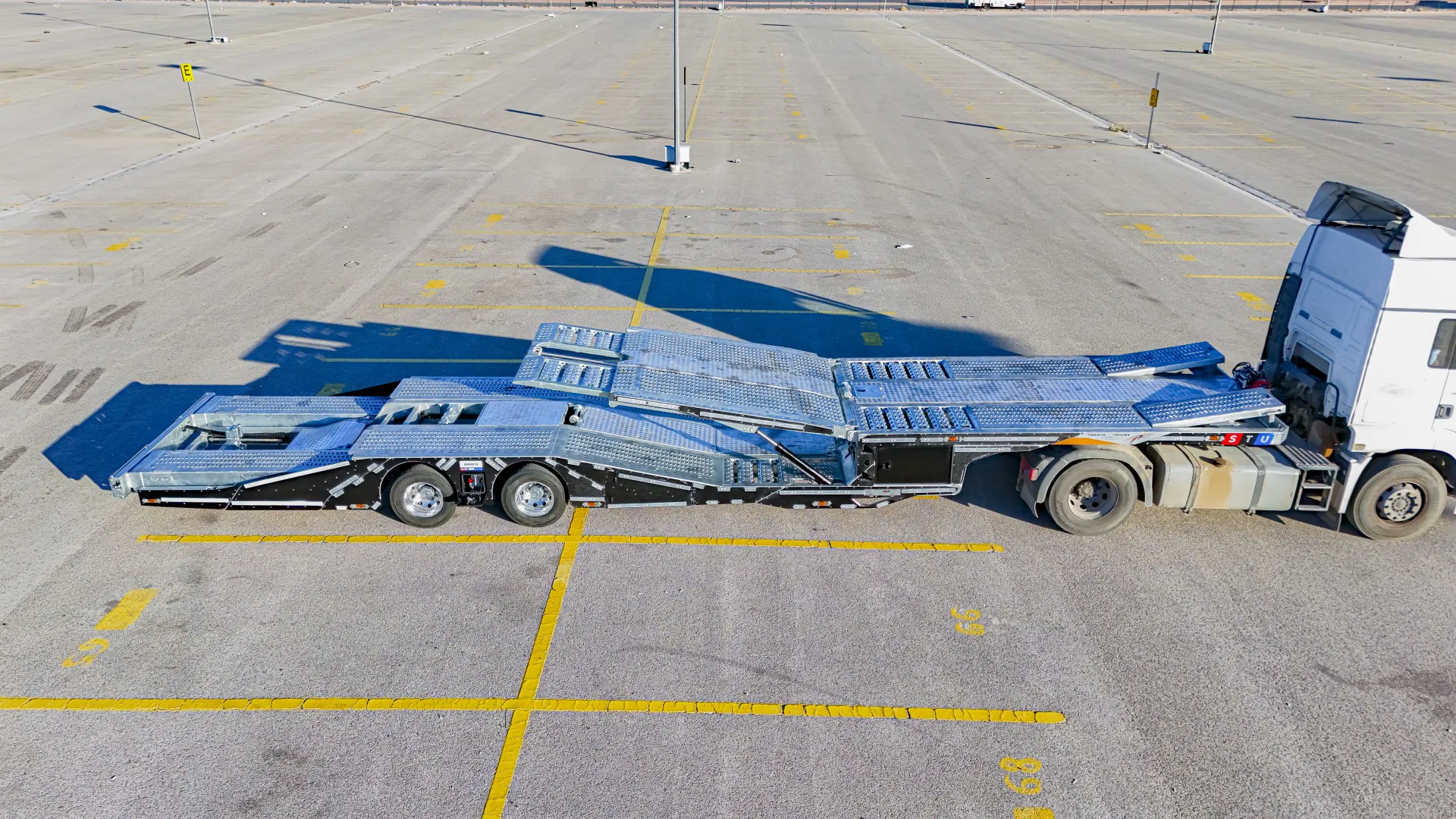

The core chassis uses S355J2+N steel of high strength with Strenx 700E available as an optional upgrade for weight reduction.
Galvanising by hot dipping is used for lasting protection against corrosion; actual service life depends on environment, use and maintenance, and warranty coverage is defined only by the signed contract.
The transporter for four cars is more compact than the six-car model, which makes it easier to manoeuvre in tight urban streets, with the same hydraulic deck control. It suits regional transport, dealership logistics and routes with access restrictions.
A six car trailer only carries six cars if the vehicles cooperate. Deck geometry, adjustable levels and loading time decide your real capacity, and cost per vehicle moved is the number that should drive the specification.
Read moreWe are open about how our car carrier trailers are produced, so there are no hidden costs and the process runs the same way from start to finish.
Chassis Steel
S355J2+N (Strenx 700E optional)
Corrosion Protection
100% Galvanised by Hot Dipping
Capacity
4 vehicles
Hydraulic System
Multistage cylinders, controlled by a PLC with Hansa-Flex
Braking
EBS (Wabco / Knorr-Bremse)
Suspension
Air suspension
Lighting
Aspöck LED suite
